| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
JM38510/08001BCA
MILITARY 3-CH, 3-INPUT, 4.5-V TO
|
54S | Tube | Active | AND Gate | 3 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|
SN74ALVC08IDREP
IC GATE AND 4CH 2-INP 14SOIC
|
74ALVC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
|
JM38510/17101BCA
MILITARY 4-CH, 2-INPUT, 3-V TO 1
|
4000B | Tube | Active | OR Gate | 2 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
DM54S32W/883
OR GATE, S SERIES, TTL
|
54S | Bulk | Obsolete | OR Gate | 2 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|
SN74HC04NSR
IC INVERTER 6CH 1-INP 14SOP
|
74HC | Tape & Reel (TR) | Active | Inverter | 1 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
JM54AC14BCA-RH
54AC14 - HEX INVERTER SCHMITT TR
|
54AC | Bulk | Active | Inverter | 1 | Schmitt Trigger Input | 2V ~ 6V | 24mA, 24mA | 0.5V ~ 1.1V | 2.2V ~ 3.9V |
|
CD74HC08MT
IC GATE AND 4CH 2-INP 14SOIC
|
74HC | Tape & Reel (TR) | Discontinued at | AND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
DM54S00W/883
NAND GATE, S SERIES, TTL
|
54S | Bulk | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|

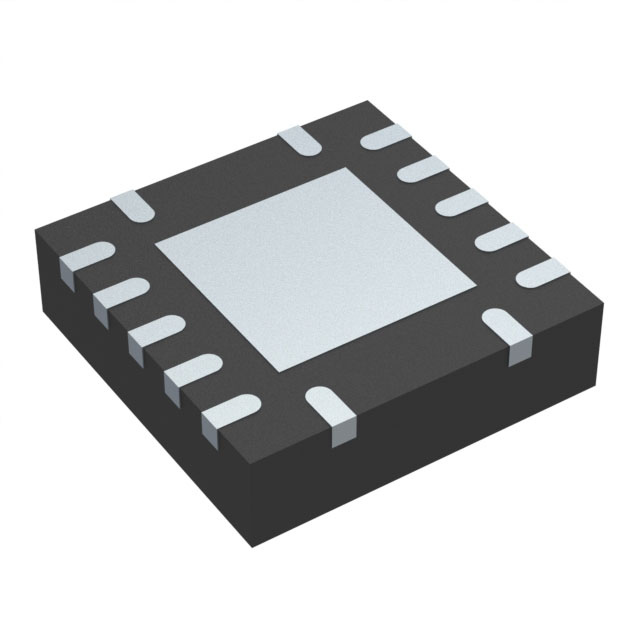

SN74ALVC00RGYRG4
IC GATE NAND 4CH 2-INP 14VQFN
|
74ALVC | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
CD74HC02E
IC GATE NOR 4CH 2-INP 14DIP
|
74HC | Tube | Active | NOR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
5962-8762402VDA
SPACE 6-CH, 2-V TO 6-V INVERTERS
|
54AC | Tube | Active | Inverter | 6 | Schmitt Trigger | 2V ~ 6V | 24mA, 24mA | - | 2.2V ~ 3.9V |
|
|
SN54S140J
MILITARY 2-CH, 4-INPUT, 4.5-V TO
|
54S | Tube | Active | NAND Gate | 4 | - | 4.5V ~ 5.5V | - | 0.8V | 2V |
