| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

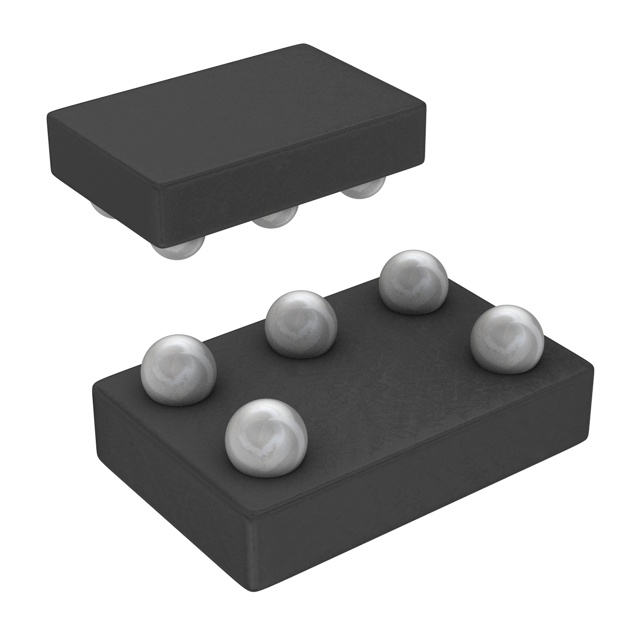

SN74LVC1G02YZPR
IC GATE NOR 1CH 2-INP 5DSBGA
|
74LVC | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
CC01366AC2TR/NOPB
IC GATE MTL CMOS 44-PLCC
|
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
SN74LS32DR
IC GATE OR 4CH 2-INP 14SOIC
|
74LS | Tape & Reel (TR) | Active | OR Gate | 2 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
SN74LV20APWTE4
IC GATE NAND 2CH 4-INP 14TSSOP
|
74LV | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
SN74LV86ATPWRG4Q1
IC
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC08APWRG3-J
SN74LVC08A
|
74LVC | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LV86ADRE4
IC GATE XOR 4CH 2-INP 14SOIC
|
74LV | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 2 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
SNJ54H21W
AND GATE, 4-INPUT, TTL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
SN74LS20DR
IC GATE NAND 2CH 4-INP 14SOIC
|
74LS | Tape & Reel (TR) | Active | NAND Gate | 4 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
SN74LVC32PWLE
OR GATE, LVC/LCX/Z SERIES
|
74LVC | Bulk | Active | - | - | - | - | - | - | - |
|
SN74AHC1G86DCKR
IC GATE XOR 1CH 2-INP SC70-5
|
74AHC | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | Schmitt Trigger Input | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74LS08N
IC GATE AND 4CH 2-INP 14DIP
|
74LS | Tube | Active | AND Gate | 2 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
