| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74HC02DRE4
IC GATE NOR 4CH 2-INP 14SOIC
|
74HC | Tape & Reel (TR) | Obsolete | NOR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74HC21DG4
IC GATE AND 2CH 4-INP 14SOIC
|
74HC | Tube | Discontinued at | AND Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74HC32DRE4
IC GATE OR 4CH 2-INP 14SOIC
|
74HC | Tape & Reel (TR) | Obsolete | OR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|

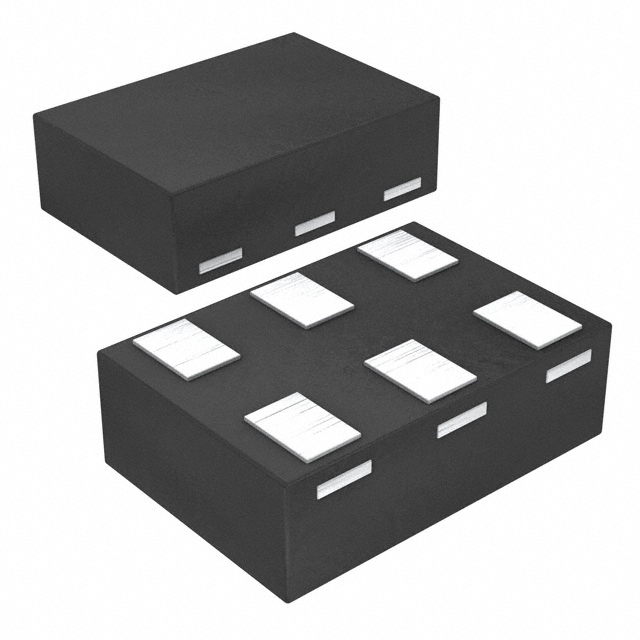

SN74LVC1G08QDRYRQ1
IC GATE AND 1CH 2-INP 6USON
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74HC20DRG4
IC GATE NAND 2CH 4-INP 14SOIC
|
74HC | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74HCS132DYYR
4-CH, 4-INPUT, 2V TO 6V 5.2MA DR
|
74HCS | Tape & Reel (TR) | Active | NAND Gate | 2 | Schmitt Trigger Input | 2V ~ 6V | 5.2mA, 5.2mA | 1V ~ 3.2V | 1.5V ~ 4.2V |
|
SN74HC00QPWRNS
PROTOTYPE
|
74HC | Bulk | Active | NAND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
CD4011UBPWG4
IC GATE NAND 4CH 2-INP 14TSSOP
|
4000B | Tube | Obsolete | NAND Gate | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
|
SN74HC7002PWRG4
IC GATE NOR 4CH 2-INP 14TSSOP
|
74HC | Tape & Reel (TR) | Obsolete | NOR Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
SN74HC7001NSRE4
IC GATE AND SCHMIT 4CH 2IN 14SOP
|
74HC | Tape & Reel (TR) | Obsolete | AND Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
|
SN74HC08NE4
4-CH, 2-INPUT, 2-V TO 6-V AND GA
|
74HC | Tube | Active | AND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74LVC2G14IDCKRQ1
IC INVERT SCHMITT 2CH 2IN SC70-6
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | Inverter | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.3V ~ 1.4V | 1.4V ~ 3.7V |
