| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74S00DRG4
IC GATE NAND 4CH 2-INP 14SOIC
|
74S | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 4.75V ~ 5.25V | 1mA, 20mA | 0.8V | 2V |
|

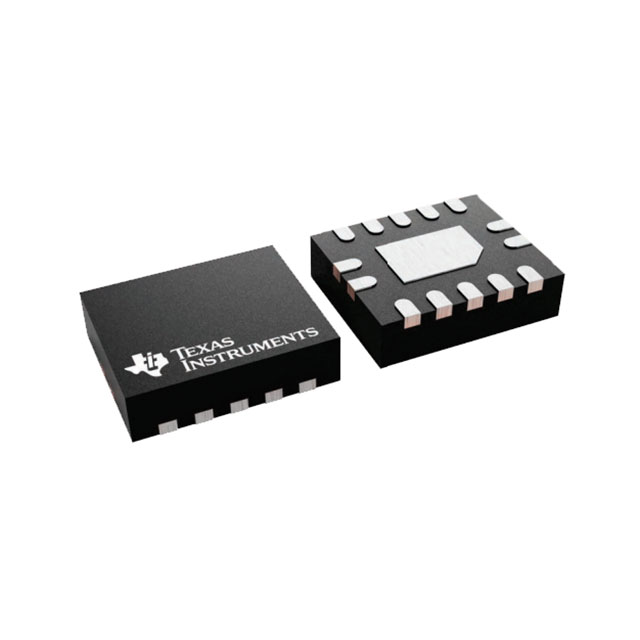

SN74HCS14BQAR
HEX INVERTER WITH SCHMITT-TRIGGE
|
74HCS | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
SN74LVC2G08IDCTRQ1
IC GATE AND 2CH 2-INP SM8
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74HCS00DR
IC GATE NAND 4CH 2-INP 14SOIC
|
74HCS | Tape & Reel (TR) | Active | NAND Gate | 2 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
|
SN74LVC02AQDRG4Q1
IC GATE NOR 4CH 2-INP 14SOIC
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 2V ~ 3.6V | 24mA, 24mA | 0.8V | 2V |
|
SN74LVC00AQPWRG4Q1
IC GATE NAND 4CH 2-INP 14TSSOP
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 2V ~ 3.6V | 24mA, 24mA | 0.8V | 2V |
|
SN74HCS00BQAR
QUADRUPLE 2-INPUT NAND GATES WIT
|
74HCS | Tape & Reel (TR) | Active | NAND Gate | 2 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
SN74S132DRE4
IC GATE NAND 4CH 2-INP 14SOIC
|
74S | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | Schmitt Trigger | 4.75V ~ 5.25V | 1mA, 20mA | 1.1V | 1.9V |
|
SN74LVC04AQPWRQ1
IC INVERTER 6CH 1-INP 14TSSOP
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | Inverter | 1 | - | 2V ~ 3.6V | 24mA, 24mA | 0.8V | 2V |
|
|
SN74LVC32AQDRG4Q1
IC GATE OR 4CH 2-INP 14SOIC
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Discontinued at | OR Gate | 2 | - | 2V ~ 3.6V | 24mA, 24mA | 0.8V | 2V |
|

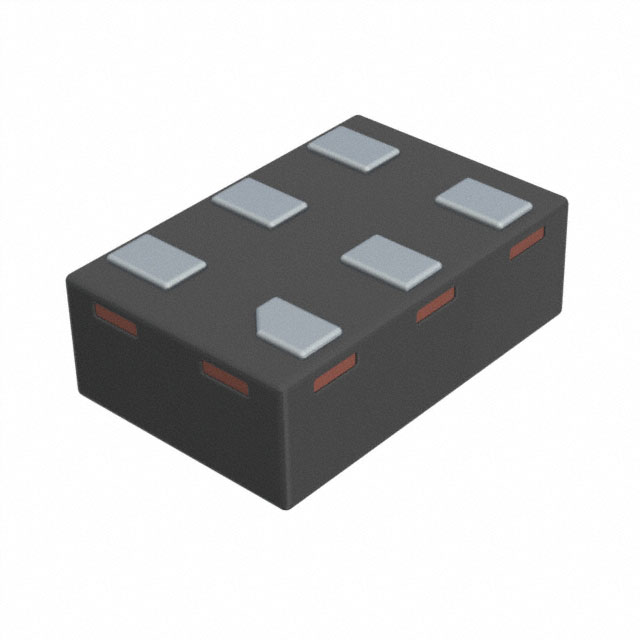

1P2GU04QDRYRQ1
IC INVERTER 2CH 2-INP 6SON
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | Inverter | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | - | - |
|
SN74S20N
IC GATE NAND 2CH 4-INP 14DIP
|
74S | Tube | Active | NAND Gate | 4 | - | 4.75V ~ 5.25V | 1mA, 20mA | 0.8V | 2V |
