| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD74HC30E
IC GATE NAND 1CH 8-INP 14DIP
|
74HC | Tube | Active | NAND Gate | 8 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SNJ54128W
IC GATE NOR 4CH 2-INP 14CFP
|
- | Tube | Active | NOR Gate | 2 | - | 4.5V ~ 5.5V | 29mA, 48mA | 0.8V | 2V |
|
SN74AUC04RGYR
IC INVERTER 6CH 1-INP 14VQFN
|
74AUC | Tape & Reel (TR) | Active | Inverter | 1 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|
SN74AHCT1G32DCKT
IC GATE OR 1CH 2-INP SC70-5
|
74AHCT | Tape & Reel (TR) | Active | OR Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
SN74LS266DR
IC GATE XNOR OPEN 4CH 2IN 14SOIC
|
74LS | Tape & Reel (TR) | Obsolete | XNOR (Exclusive NOR) | 2 | Open Collector | 4.75V ~ 5.25V | -, 8mA | 0.8V | 2V |
|
SN74HC08DR
IC GATE AND 4CH 2-INP 14SOIC
|
74HC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
SNJ54ACT14FK
MILITARY 6-CH, 4.5-V TO 5.5-V IN
|
54ACT | Tube | Active | Inverter | 6 | Schmitt Trigger | 4.5V ~ 5.5V | 24mA, 24mA | 1.2V ~ 1.4V | 1.9V ~ 2.1V |
|
SN74HC11PWR
IC GATE AND 3CH 3-INP 14TSSOP
|
74HC | Tape & Reel (TR) | Active | AND Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74LS33NG4
IC GATE NOR OP COL 4CH 2IN 14DIP
|
74LS | Tube | Discontinued at | NOR Gate | 2 | Open Collector | 4.75V ~ 5.25V | -, 24mA | 0.8V | 2V |
|

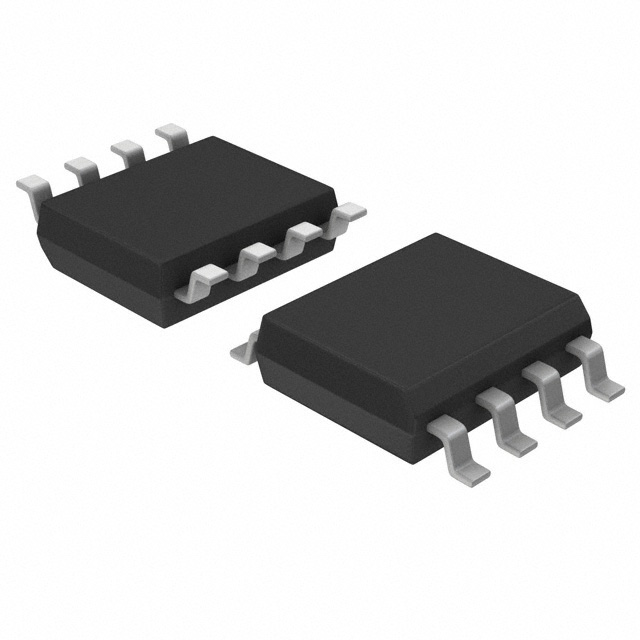

SN74AUC2G08DCTRE4
IC GATE AND 2CH 2-INP SM8
|
74AUC | Bulk | Active | AND Gate | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|
|
5962-8769901MDA
MILITARY 4-CH, 2-INPUT, 4.5-V TO
|
54ACT | Tube | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
|
SN74HC14DR
IC INV SCHMITT 6CH 1-IN 14SOIC
|
74HC | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
