| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LS260PC
IC GATE NOR 2CH 5-INP 14DIP
|
74LS | Bulk | Active | NOR Gate | 5 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
CD4069UBMT
IC INVERTER 6CH 1-INP 14SOIC
|
4000B | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
SN74LVCU04APWTG4
IC INVERTER 6CH 1-INP 14TSSOP
|
74LVCU | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.4V ~ 0.65V | 1.32V ~ 2.88V |
|
SN74S132D
IC GATE NAND 4CH 2-INP 14SOIC
|
74S | Tube | Obsolete | NAND Gate | 2 | Schmitt Trigger | 4.75V ~ 5.25V | 1mA, 20mA | 1.1V | 1.9V |
|
SN74S140DR
IC GATE NAND 2CH 4-INP 14SOIC
|
74S | Tape & Reel (TR) | Active | NAND Gate | 4 | - | 4.75V ~ 5.25V | 40mA, 60mA | 0.8V | 2V |
|
5962-9682001QCA
MILITARY 6-CH, 2-V TO 5.5-V INVE
|
54AHC | Tube | Active | AND Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
|
CD4081BEE4
4-CH, 2-INPUT, 3-V TO 18-V AND G
|
4000B | Tube | Active | AND Gate | 2 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
74S20DCQR
NAND GATE, TTL
|
- | Bulk | Active | - | - | - | - | - | - | - |
|

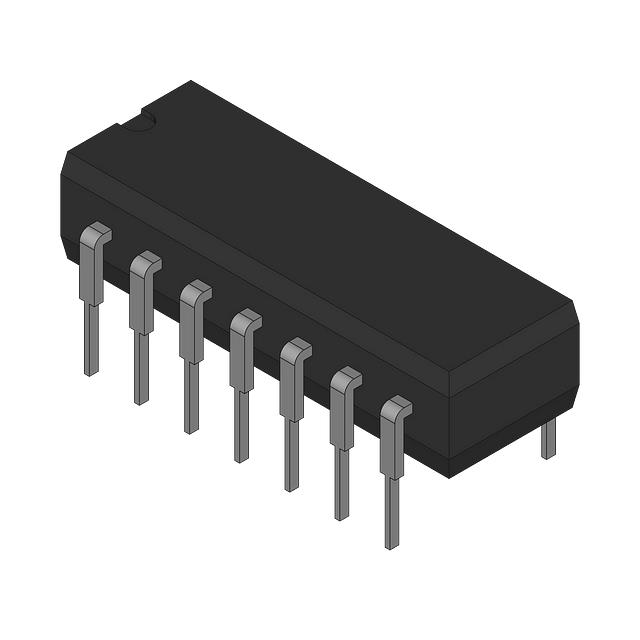

SN74LS32N
IC GATE OR 4CH 2-INP 14DIP
|
74LS | Tube | Obsolete | OR Gate | 2 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
SN74AHCT00QDRG4Q1
IC GATE NAND 4CH 2-INP 14SOIC
|
Automotive, AEC-Q100, 74AHCT | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
|
CD4093BF
MILITARY 4-CH, 2-INPUT, 3-V TO 1
|
4000B | Tube | Active | NAND Gate | 2 | Schmitt Trigger | 3V ~ 18V | 6.8mA, 6.8mA | 2.8V ~ 9.6V | 3.6V ~ 12.7V |
|
|
SN74LS04DR
IC INVERTER 6CH 1-INP 14SOIC
|
74LS | Tape & Reel (TR) | Active | Inverter | 1 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
