| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74HC11ADB
PROTOTYPE
|
74HC | Bulk | Active | AND Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
DM54S11W/883
AND GATE, S SERIES, 3-INPUT, TTL
|
54S | Bulk | Active | AND Gate | 3 | - | 4.75V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|

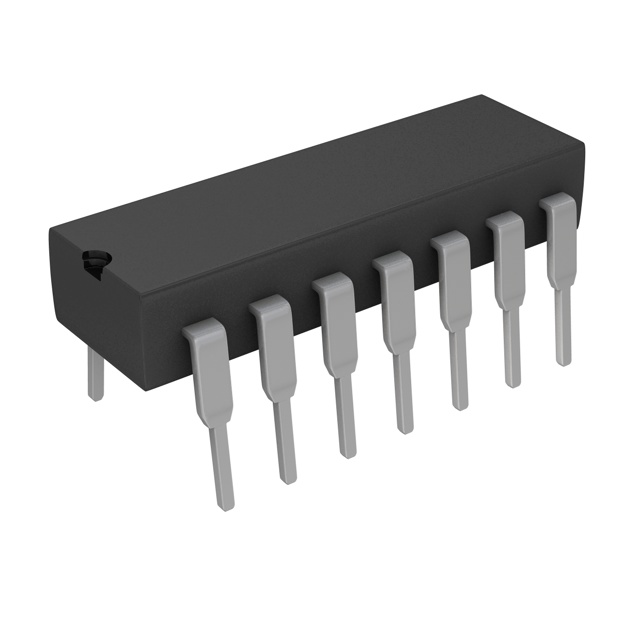

CD4012BEE4
IC GATE NAND 2CH 4-INP 14DIP
|
4012B | Tube | Active | NAND Gate | 4 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
SN74HC132ANS
PROTOTYPE
|
74HC | Tube | Active | NAND Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 1V ~ 3.2V | 1.5V ~ 4.2V |
|
|
5962-8684101DA
MILITARY 3-CH, 3-INPUT, 4.5-V TO
|
54ALS | Tube | Active | AND Gate | 3 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.8V | 2V |
|
SN7406DR
IC INVERTER OPEN 6CH 1-IN 14SOIC
|
7400 | Tape & Reel (TR) | Active | Inverter | 1 | Open Collector | 4.75V ~ 5.25V | -, 40mA | 0.8V | 2V |
|
SN74LVC1G125DCK3
IC BUFFER NON-INVERT 5.5V SC70-5
|
74LVC | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
|
SN74LV4T08QPWRQ1
IC GATE AND 4CH 2-INP 14TSSOP
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Active | AND Gate | 2 | Schmitt Trigger | 1.6V ~ 5.5V | 8mA, 8mA | 0.5V ~ 0.85V | 1.1V ~ 2V |
|

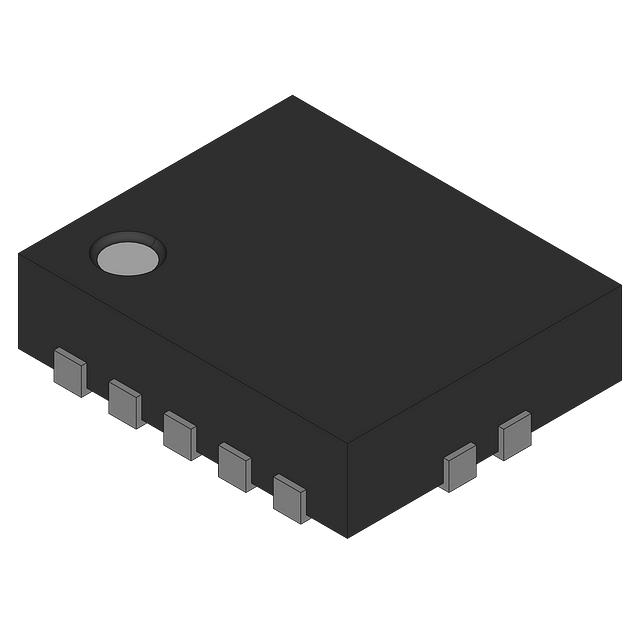

SN74LV14ARGYR-MI
MOS GENERAL PURP LOG
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74S133DR
NAND GATE
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN54ALS05AJ
IC INVERTER OPEN 6CH 1-IN 14CDIP
|
54ALS | Bulk | Active | Inverter | 1 | Open Collector | 4.5V ~ 5.5V | 100µA, 4mA | 0.7V | 2V |
|
74AUC2GU04DBVRG4
IC INVERTER 2CH 2-INP SOT23-6
|
74AUC | Tape & Reel (TR) | Discontinued at | Inverter | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | - | - |
