| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4049UBPW
IC INVERTER 6CH 1-INP 16TSSOP
|
4000B | Tube | Discontinued at | Inverter | 1 | - | 3V ~ 18V | 4.3mA, 24mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
5962-9753401Q2A
MILITARY 4-CH, 2-INPUT, 1.65-V T
|
54LVC | Tube | Active | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74HC14D
IC INV SCHMITT 6CH 1-IN 14SOIC
|
74HC | Bulk | Discontinued at | Inverter | 1 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
SN74LV21ADGVR
IC GATE AND 2CH 4-INP 14TVSOP
|
74LV | Tape & Reel (TR) | Active | AND Gate | 4 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
|
5962-9760501QCA
MILITARY 6-CH, 2-V TO 3.6-V INVE
|
54LVC | Tube | Active | Inverter | 6 | - | 2V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
|
CD4023BEE4
4-CH, 2-INPUT, 3-V TO 18-V NAND
|
4000B | Tube | Active | NAND Gate | 3 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
SN74LV20ADGVR
IC GATE NAND 2CH 4-INP 14TVSOP
|
74LV | Tape & Reel (TR) | Active | NAND Gate | 4 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
|
SN54AS804BJ
IC GATE NAND 6CH 2-INP 20CDIP
|
54AS | Tube | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 40mA, 40mA | 0.8V | 2V |
|
SN74HC00DRE4
IC GATE NAND 4CH 2-INP 14SOIC
|
74HC | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|

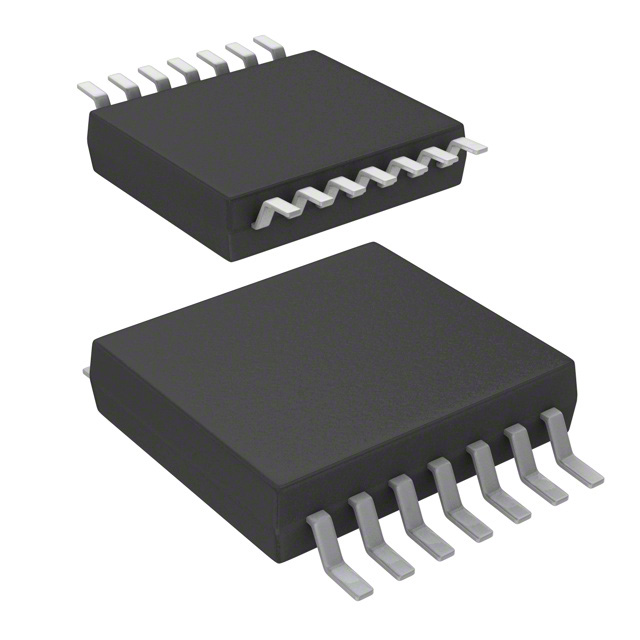

SN74LV04ADGVRE4
IC INVERTER 6CH 1-INP 14TVSOP
|
74LV | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
CD4069UBEG4
IC INVERTER 6CH 1-INP 14DIP
|
4000B | Tube | Discontinued at | Inverter | 1 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
|
SNJ54AS02FK
IC GATE NOR 4CH 2-INP 20LCCC
|
54AS | Tube | Active | NOR Gate | 2 | - | 4.5V ~ 5.5V | 2mA, 20mA | 0.8V | 2V |
