| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74HC14IPWRCT
PROTOTYPE
|
74HC | Bulk | Active | Inverter | 6 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 1V ~ 3.2V | 1.5V ~ 4.2V |
|
CD74HC4002NSRE4
IC GATE NOR 2CH 4-INP 14SOP
|
74HC | Tape & Reel (TR) | Obsolete | NOR Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74HC132DR
IC GATE NAND 4CH 2-INP 14SOIC
|
74HC | Tape & Reel (TR) | Active | NAND Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
5962-9218201MCA
SN54ACT10 TRIPLE 3-INPUT POSITIV
|
* | Bulk | Active | - | - | - | - | - | - | - |
|

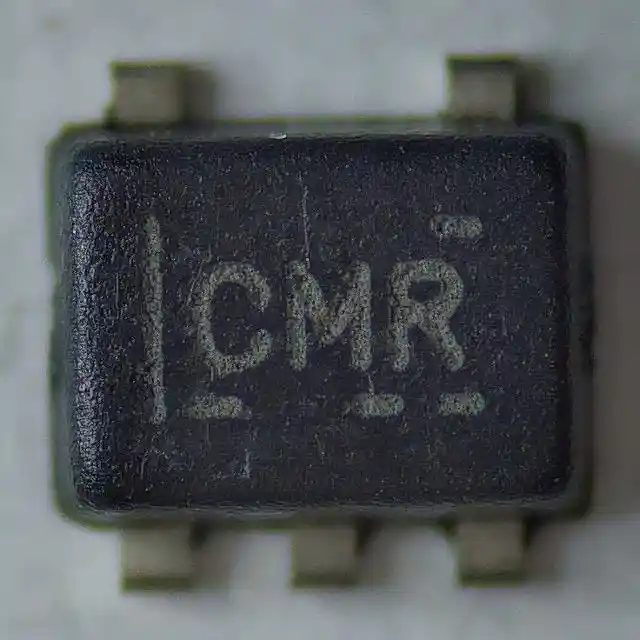

SN74LVC1G125DRLR
IC BUFFER NON-INVERT 5.5V SOT5
|
74LVC | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
SN74HC04DRE4
IC INVERTER 6CH 1-INP 14SOIC
|
74HC | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
CD74HC11M96
IC GATE AND 3CH 3-INP 14SOIC
|
74HC | Tape & Reel (TR) | Active | AND Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
CD54ACT08F3A
CD54ACT08 QUAD 2-INPUT AND GATES
|
* | Bulk | Active | - | - | - | - | - | - | - |
|

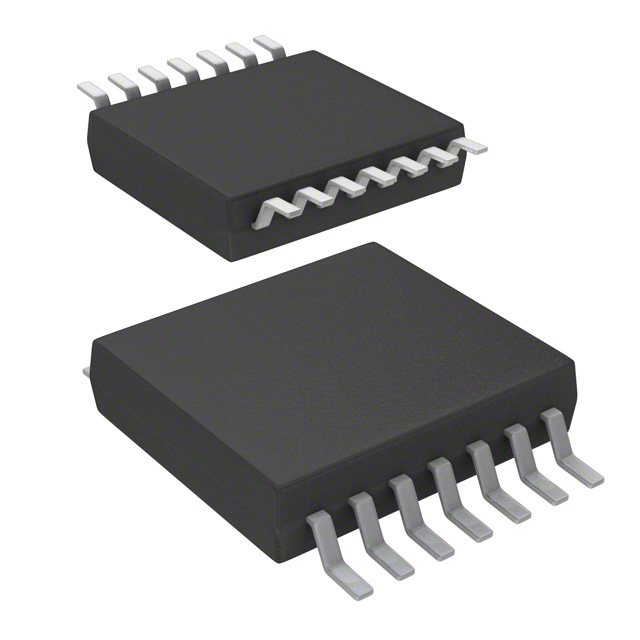

SN74AHCT14DGVRE4
IC INVERTER 6CH 1-INP 14TVSOP
|
74AHCT | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 8mA, 8mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V |
|
SN74LVC1G11DCKR
IC GATE AND 1CH 3-INP SC70-6
|
74LVC | Tape & Reel (TR) | Active | AND Gate | 3 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74HC132DTE4
IC GATE NAND 4CH 2-INP 14SOIC
|
74HC | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
MM74HC4002J
IC GATE XNOR 4CH 2-INP 14DIP
|
74HC | Bulk | Active | XNOR (Exclusive NOR) | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
