| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
54F132LMQB
NAND GATE, F/FAST SERIES
|
54F | Bulk | Active | NAND Gate | 2 | Schmitt Trigger | 4.5V ~ 5.5V | 1mA, 20mA | 1.1V | 2V |
|

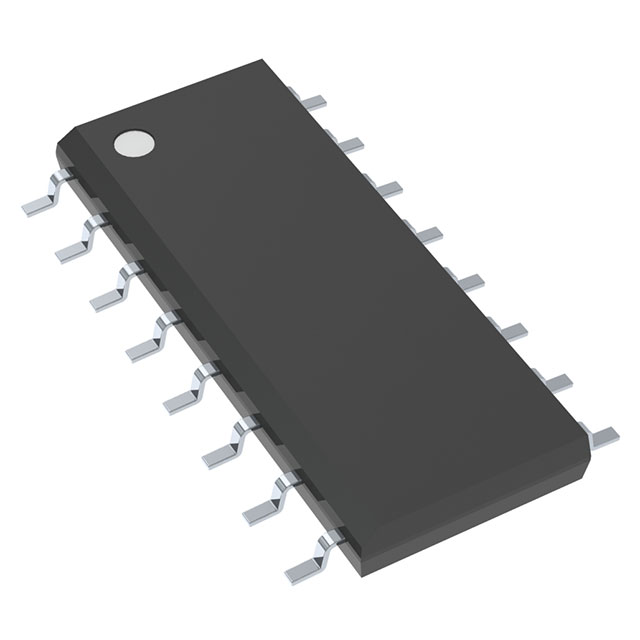

CD4009UBMT
IC INVERTER 6CH 1-INP 16SOIC
|
4000B | Tape & Reel (TR) | Active | Inverter | 1 | - | 3V ~ 18V | 1.5mA, 24mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
SNJ54LVC00AW
54LVC00A QUADRUPLE 2-INPUT POSIT
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LV08APWR
IC GATE AND 4CH 2-INP 14TSSOP
|
74LV | Tape & Reel (TR) | Active | AND Gate | 2 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
SNJ54ACT11W
MILITARY 3-CH, 3-INPUT, 4.5-V TO
|
54ACT | Tube | Active | AND Gate | 3 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
|
SNJ54ACT10J
MILITARY 3-CH, 3-INPUT, 4.5-V TO
|
54ACT | Tube | Active | NAND Gate | 3 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
SN74HC20DBRE4
IC GATE NAND 2CH 4-INP 14SSOP
|
74HC | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
CD4023BMT
IC GATE NAND 3CH 3-INP 14SOIC
|
4000B | Tape & Reel (TR) | Discontinued at | NAND Gate | 3 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
M38510/33002BDA
MILITARY 6-CH, 4.5-V TO 5.5-V BI
|
54F | Tube | Active | Inverter | 6 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|
SN74HC08PW
IC GATE AND 4CH 2-INP 14TSSOP
|
74HC | Bulk | Discontinued at | AND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
CD4071BEE4
4-CH, 2-INPUT, 3-V TO 18-V OR GA
|
4000B | Tube | Active | OR Gate | 2 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SN74LV14ANSR
IC INVERT SCHMITT 6CH 1-IN 14SOP
|
74LV | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 2V ~ 5.5V | 12mA, 12mA | 0.75V ~ 1.5V | 1.75V ~ 3.5V |
