| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LS14DBRG4
IC INVERTER SCHMITT 6CH 14SSOP
|
74LS | Bulk | Active | Inverter | 1 | Schmitt Trigger | 4.75V ~ 5.25V | 400µA, 8mA | 0.5V | 1.9V |
|
CD54HCT00F
MILITARY 4-CH, 2-INPUT, 4.5-V TO
|
54HCT | Tube | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
SN74HC00DRG4
IC GATE NAND 4CH 2-INP 14SOIC
|
74HC | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
SN74LS00N-NG
PROTOTYPE
|
74LS | Bulk | Active | NAND Gate | 2 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
|
CD54HCT132F
MILITARY SINGLE 8-INPUT, 4.5-V T
|
54HCT | Tube | Active | NAND Gate | 2 | Schmitt Trigger | 4.5V ~ 5.5V | 4mA, 4mA | 1.2V ~ 1.4V | 1.9V ~ 2.1V |
|

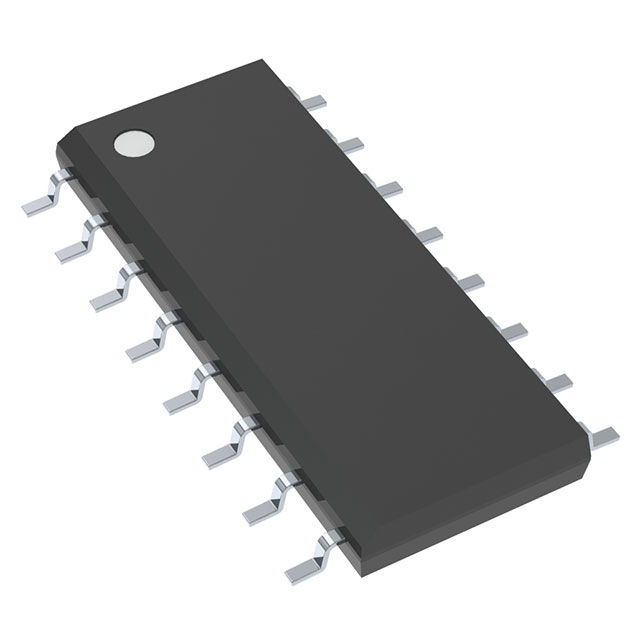

CD4009UBM
IC INVERTER 6CH 1-INP 16SOIC
|
4000B | Tube | Active | Inverter | 1 | - | 3V ~ 18V | 1.5mA, 24mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
SN74LS38NS
IC GATE NAND 4CH 2-INP 14-SO
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
CD4081BM96
IC GATE AND 4CH 2-INP 14SOIC
|
4000B | Tape & Reel (TR) | Active | AND Gate | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
SNJ54AC14FK
MILITARY 6-CH, 2-V TO 6-V INVERT
|
54AC | Tube | Active | Inverter | 6 | Schmitt Trigger | 2V ~ 6V | 24mA, 24mA | - | 2.2V ~ 3.9V |
|
CD74HCU04M96G4
IC INVERTER 6CH 1-INP 14SOIC
|
74HCU | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.1V | 1.7V ~ 4.8V |
|
SNJ54AC32W
IC GATE OR 4CH 2-INP 14CFP
|
54AC | Bulk | Active | OR Gate | 2 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|
SN74HC03DT
IC GATE NAND OD 4CH 2-INP 14SOIC
|
74HC | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | Open Drain | 2V ~ 6V | -, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
