| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
M38510/07301BDA
MILITARY 4-CH, 2-INPUT, 4.5-V TO
|
54S02 | Tube | Active | NOR Gate | 2 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|
74LS20PC
NAND GATE, LS SERIES, 2 FUNC, 4
|
74LS | Bulk | Active | NAND Gate | 4 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
SN74HC7002NSR
IC GATE NOR SCHMIT 4CH 2IN 14SOP
|
74HC | Tape & Reel (TR) | Obsolete | NOR Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
SN74LV00ADGVR
IC GATE NAND 4CH 2-INP 14TVSOP
|
74LV | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
SN74LVC04AQDRQ1
IC INVERTER 6CH 1-INP 14SOIC
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | Inverter | 1 | - | 2V ~ 3.6V | 24mA, 24mA | 0.8V | 2V |
|
CD74ACT32QM96Q1
IC GATE OR 4CH 2-INP 14SOIC
|
Automotive, AEC-Q100, 74ACT | Tape & Reel (TR) | Obsolete | OR Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
SN74LS04NSR
IC INVERTER 6CH 1-INP 14SOP
|
74LS | Tape & Reel (TR) | Active | Inverter | 1 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
CD74HC02ME4
IC GATE NOR 4CH 2-INP 14SOIC
|
74HC | Tube | Discontinued at | NOR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|

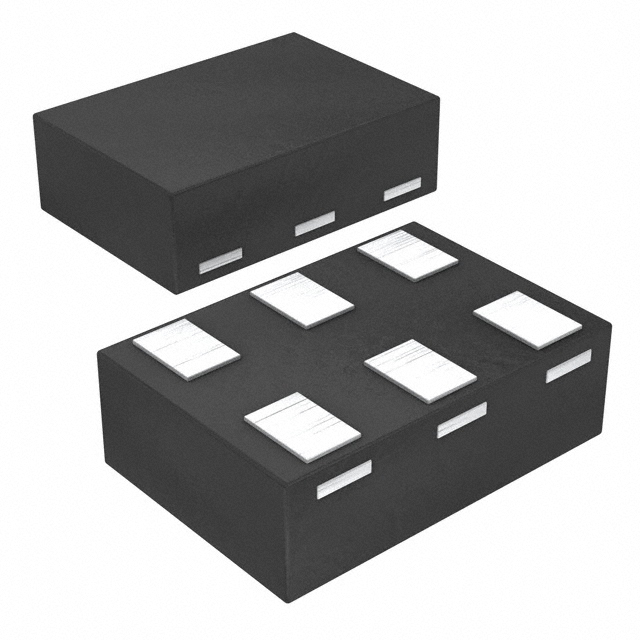

SN74LVC1G32QDRYRQ1
IC GATE OR 1CH 2-INP 6USON
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | OR Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
|
CD74HC32EE4
4-CH, 2-INPUT, 2-V TO 6-V OR GAT
|
74HC | Tube | Active | OR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74LV08APW
IC GATE AND 4CH 2-INP 14TSSOP
|
74LV | Tube | Discontinued at | AND Gate | 2 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
|
CD74HC4075EE4
3-CH, 3-INPUT, 2-V TO 6-V OR GAT
|
74HC | Tube | Active | OR Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
