| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC1G00MDBVREP
IC GATE NAND 1CH 2-INP SOT23-5
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC32APWRG4
IC GATE OR 4CH 2-INP 14TSSOP
|
74LVC | Tape & Reel (TR) | Discontinued at | OR Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74HC00DE4
IC GATE NAND 4CH 2-INP 14SOIC
|
74HC | Tube | Discontinued at | NAND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74LVC2G132DCUR-S
PROTOTYPE
|
74LVC | Bulk | Active | NAND Gate | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | - | 1.16V ~ 3.33V |
|

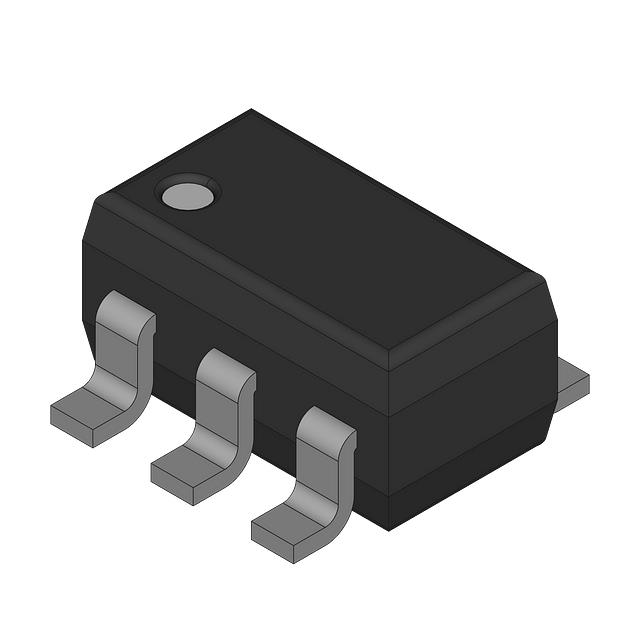

74LVC1G332DBVRG4
SN74LVC1G332 - SINGLE 3-INPUT PO
|
74LVC | Bulk | Active | - | - | - | - | - | - | - |
|
SN74F10NSR
IC GATE NAND 3CH 3-INP 14SOP
|
74F | Tape & Reel (TR) | Active | NAND Gate | 3 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|
SN74LVC1G14YZPR
IC INVERT SCHMITT 1CH 1IN 5DSBGA
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
SN74HC132DRE4
IC GATE NAND 4CH 2-INP 14SOIC
|
74HC | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
SN74LVC08APWRG4
IC GATE AND 4CH 2-INP 14TSSOP
|
74LVC | Tape & Reel (TR) | Discontinued at | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
74ACT11002N
NOR GATE, ACT SERIES
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC1G04DCKR
IC INVERTER 1CH 1-INP SC70-5
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
SN74HC08DRE4
IC GATE AND 4CH 2-INP 14SOIC
|
74HC | Tape & Reel (TR) | Obsolete | AND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
