| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5962-8769901MCA
SN54ACT00 QUADRUPLE 2-INPUT POSI
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
M38510/08003BDA
MILITARY 4-CH, 2-INPUT, 4.5-V TO
|
54S | Tube | Active | AND Gate | 2 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|
SN74LVC1G332DBVR
IC GATE OR 1CH 3-INP SOT23-6
|
74LVC | Tape & Reel (TR) | Active | OR Gate | 3 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74HC11DBRG4
IC GATE AND 3CH 3-INP 14SSOP
|
74HC | Tape & Reel (TR) | Obsolete | AND Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|

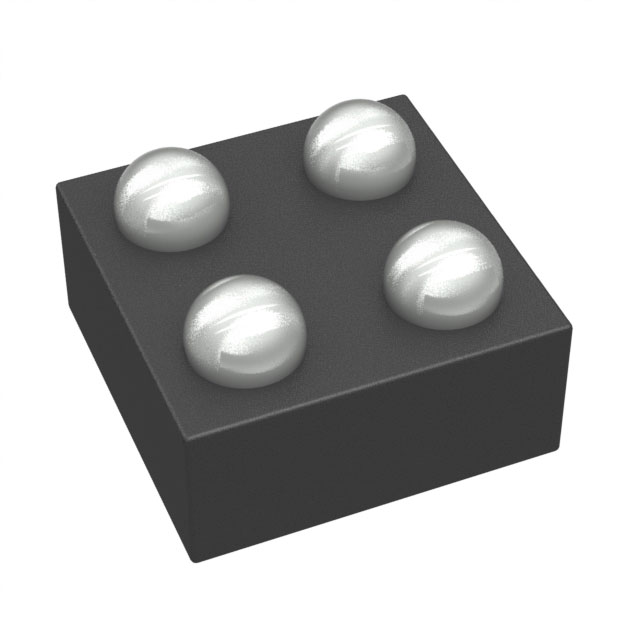

SN74LVC1G06YZVR
IC BUFFER INVERT 5.5V 4DSBGA
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
54S30DM
NAND GATE, TTL
|
54S | Bulk | Active | NAND Gate | 8 | - | 4.5V ~ 5.5V | - | - | - |
|
SN74LV10APWT
IC GATE NAND 3CH 3-INP 14TSSOP
|
74LV | Tape & Reel (TR) | Obsolete | NAND Gate | 3 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
SN74LVC1G02DBVRG4
IC GATE NOR 1CH 2-INP SOT23-5
|
74LVC | Tape & Reel (TR) | Discontinued at | NOR Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74HC08NS
IC GATE AND 4CH 2-INP 14SO
|
74HC | Bulk | Discontinued at | AND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.1V ~ 0.26V | 1.998V ~ 5.8V |
|
SN74LVC1G06DBVRE4
IC BUFFER INVERT 5.5V SOT23-5
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
SN74LVC1G38DCKT
IC GATE NAND OD 1CH 2-INP SC70-5
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 2 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
|
M38510/08001BCA
MILITARY 3-CH, 3-INPUT, 4.5-V TO
|
54S | Tube | Active | AND Gate | 3 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
