| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP3CLS100F484I7N
IC FPGA 278 I/O 484FBGA
|
Cyclone® III | Tray | Active | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 100448 |
|
EP4SGX360NF45I3
IC FPGA 920 I/O 1932FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 353600 |
|
EP4CE10F17A7N
IC FPGA 179 I/O 256FBGA
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 125°C (TJ) | 256-LBGA | 256-FBGA (17x17) | Not Verified | 10320 |
|
EP4SGX530KF43C4
IC FPGA 880 I/O 1760FCBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1760-BBGA, FCBGA | 1760-FCBGA (42.5x42.5) | Not Verified | 531200 |
|
EP4SGX70DF29I3
IC FPGA 372 I/O 780FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 72600 |
|

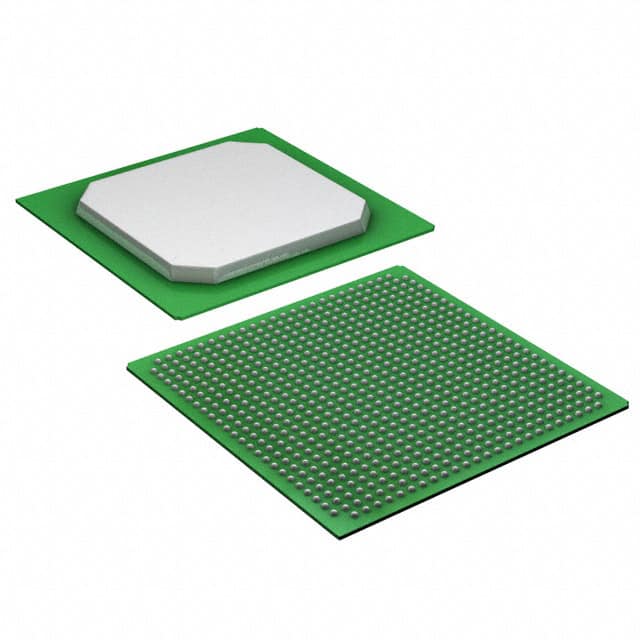

EP1S20B672C6
IC FPGA 426 I/O 672BGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-BGA (35x35) | Not Verified | 18460 |
|
EP1S20F780C6
IC FPGA 586 I/O 780FBGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 18460 |
|
|
EP4SGX530KF43I3
IC FPGA 880 I/O 1760FCBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FCBGA (42.5x42.5) | Not Verified | 531200 |
|
EP4SGX530KH40I3N
IC FPGA 744 I/O 1517HBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-HBGA (42.5x42.5) | Not Verified | 531200 |
|
EP4CE40F29C7
IC FPGA 532 I/O 780FBGA
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BGA | 780-FBGA (29x29) | Not Verified | 39600 |
|
10M08SAU169I7P
IC FPGA 130 I/O 169UBGA
|
MAX® 10 | Tray | Active | 2.85V ~ 3.465V | Surface Mount | -40°C ~ 100°C (TJ) | 169-LFBGA | 169-UBGA (11x11) | Not Verified | 8000 |
|
EP4CE6E22C9L
IC FPGA 91 I/O 144EQFP
|
Cyclone® IV E | Tray | Active | 0.97V ~ 1.03V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP Exposed Pad | 144-EQFP (20x20) | Not Verified | 6272 |
