| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP4CE6E22C6N
IC FPGA 91 I/O 144EQFP
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP Exposed Pad | 144-EQFP (20x20) | Not Verified | 6272 |
|
EP4SGX290KF43C2
IC FPGA 880 I/O 1760FCBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1760-BBGA, FCBGA | 1760-FCBGA (42.5x42.5) | Not Verified | 291200 |
|

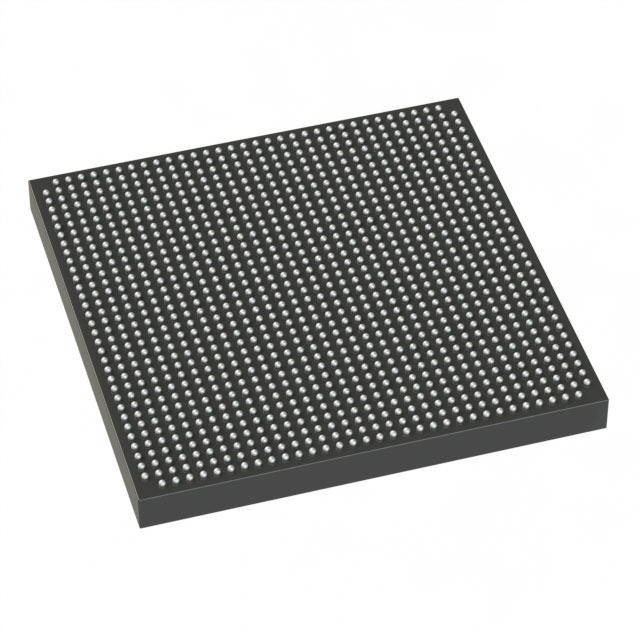

EP4SGX290HF35I4N
IC FPGA 564 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 291200 |
|

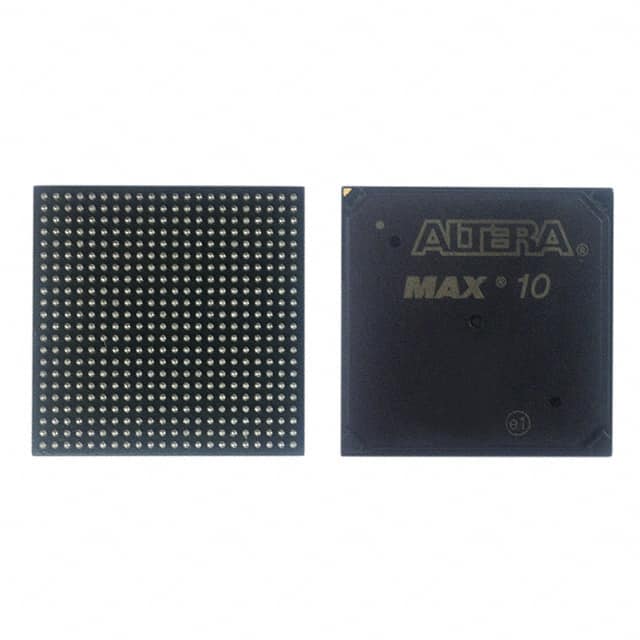

10M16SAU324I7G
IC FPGA 246 I/O 324UBGA
|
MAX® 10 | Tray | Active | 2.85V ~ 3.465V | Surface Mount | -40°C ~ 100°C (TJ) | 324-LFBGA | 324-UBGA (15x15) | Not Verified | 16000 |
|
EP3CLS70F780C8
IC FPGA 413 I/O 780FBGA
|
Cyclone® III | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BGA | 780-FBGA (29x29) | Not Verified | 70208 |
|
EP4CE40F29C8
IC FPGA 532 I/O 780FBGA
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BGA | 780-FBGA (29x29) | Not Verified | 39600 |
|

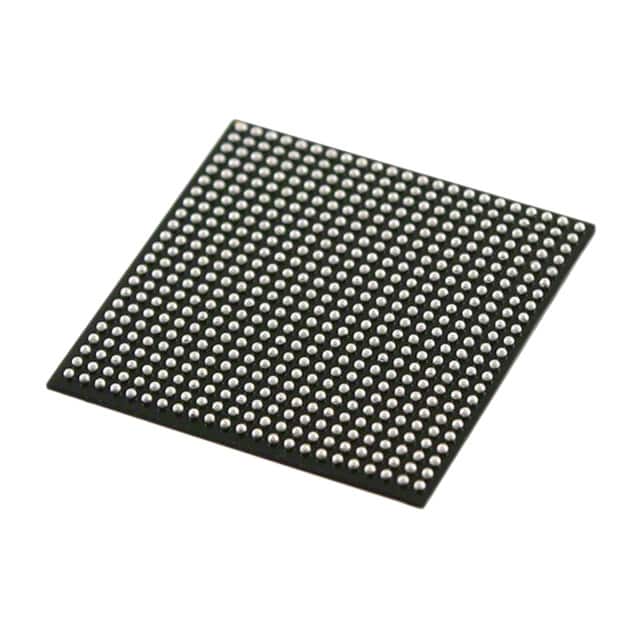

EP4CE55F23I7
IC FPGA 324 I/O 484FBGA
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 55856 |
|
EP4SGX360FF35C4N
IC FPGA 564 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 353600 |
|
EP3C16Q240C8
IC FPGA 160 I/O 240QFP
|
Cyclone® III | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 240-BFQFP | 240-PQFP (32x32) | Not Verified | 15408 |
|
EP3CLS100F484I7
IC FPGA 278 I/O 484FBGA
|
Cyclone® III | Tray | Active | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 100448 |
|
|
EP1S40F780I6N
IC FPGA 615 I/O 780FBGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 41250 |
|
EP3C10U256C8
IC FPGA 182 I/O 256UBGA
|
Cyclone® III | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 256-LFBGA | 256-UBGA (14x14) | Not Verified | 10320 |
