| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP4CE10E22C8LN
IC FPGA 91 I/O 144EQFP
|
Cyclone® IV E | Tray | Active | 0.97V ~ 1.03V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP Exposed Pad | 144-EQFP (20x20) | Not Verified | 10320 |
|
EP4CE40F29I8LN
IC FPGA 532 I/O 780FBGA
|
Cyclone® IV E | Tray | Active | 0.97V ~ 1.03V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BGA | 780-FBGA (29x29) | Not Verified | 39600 |
|
EP4CE22F17C6N
IC FPGA 153 I/O 256FBGA
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 256-LBGA | 256-FBGA (17x17) | Not Verified | 22320 |
|
EP4SGX180DF29I3
IC FPGA 372 I/O 780FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 175750 |
|
|
EP4SGX70DF29C4
IC FPGA 372 I/O 780FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 72600 |
|
EP4CE30F29C9LN
IC FPGA 532 I/O 780FBGA
|
Cyclone® IV E | Tray | Active | 0.97V ~ 1.03V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BGA | 780-FBGA (29x29) | Not Verified | 28848 |
|
EP4CE40F23I7
IC FPGA 328 I/O 484FBGA
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 39600 |
|

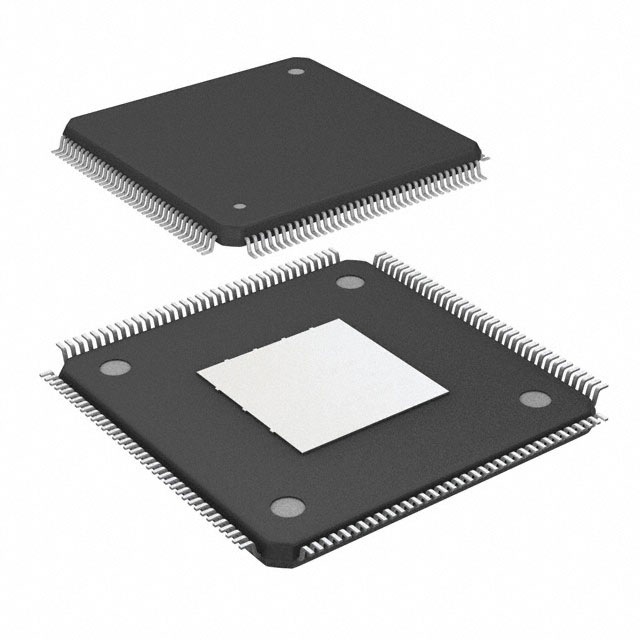

EP4CE15E22C6
IC FPGA 81 I/O 144EQFP
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP Exposed Pad | 144-EQFP (20x20) | Not Verified | 15408 |
|
EP4SGX110FF35I4N
IC FPGA 372 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 105600 |
|
EP4SGX530NF45C2N
IC FPGA 920 I/O 1932FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 531200 |
|
EP4SGX290HF35I4
IC FPGA 564 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 291200 |
|
EP4SGX360FF35C3N
IC FPGA 564 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 353600 |
