| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP4CE15M9C7N
IC FPGA 165 I/O 256MBGA
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 256-TFBGA | 256-MBGA (9x9) | Not Verified | 15408 |
|
EP4SGX230HF35I4N
IC FPGA 564 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 228000 |
|
|
EP4SGX230HF35C4N
IC FPGA 564 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 228000 |
|

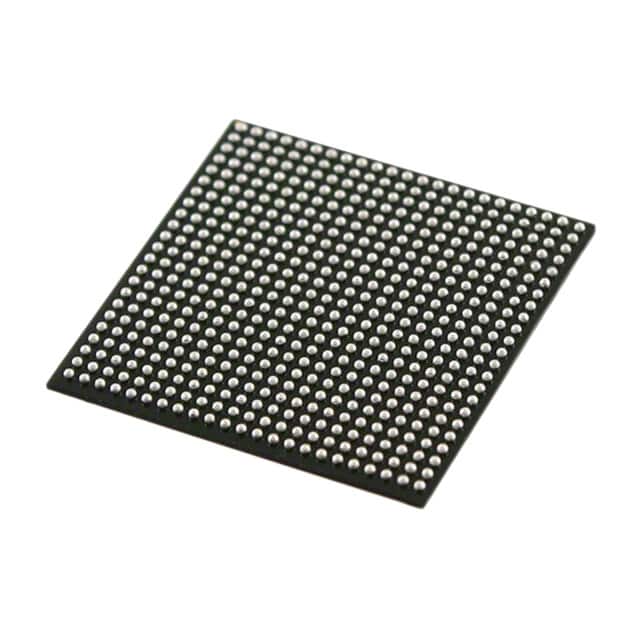

EP4CE15F23C9L
IC FPGA 343 I/O 484FBGA
|
Cyclone® IV E | Tray | Active | 0.97V ~ 1.03V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 15408 |
|

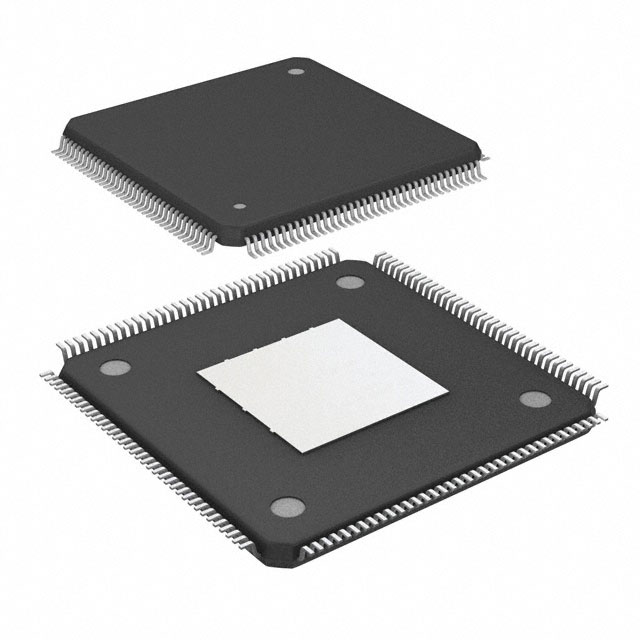

EP3C10E144C7
IC FPGA 94 I/O 144EQFP
|
Cyclone® III | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP Exposed Pad | 144-EQFP (20x20) | Not Verified | 10320 |
|
EP3C25F324I7N
IC FPGA 215 I/O 324FBGA
|
Cyclone® III | Tray | Active | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 324-BGA | 324-FBGA (19x19) | Not Verified | 24624 |
|
EP4SGX530HH35C2NAE
IC FPGA 1152HBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-HBGA (42.5x42.5) | Not Verified | 531200 |
|

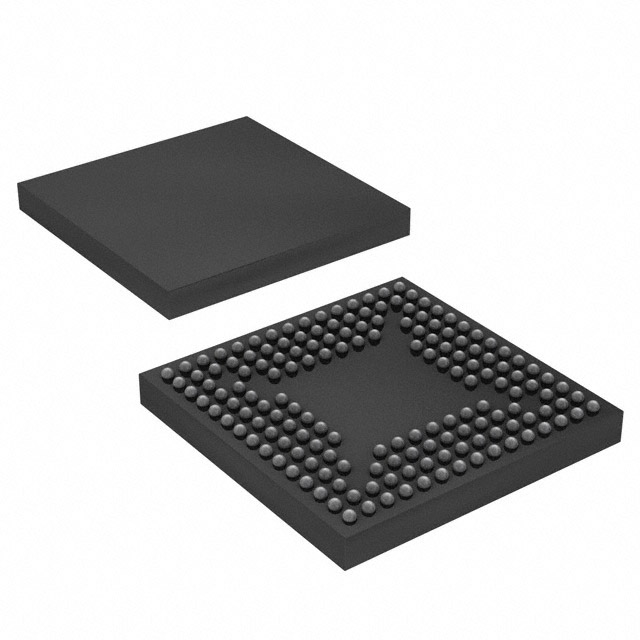

EP3C5M164I7N
IC FPGA 106 I/O 164MBGA
|
Cyclone® III | Tray | Active | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 164-TFBGA | 164-MBGA (8x8) | Not Verified | 5136 |
|
10M50DCF484C7G
IC FPGA 360 I/O 484FBGA
|
MAX® 10 | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 50000 |
|
EP4CE40F23C8
IC FPGA 328 I/O 484FBGA
|
Cyclone® IV E | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 39600 |
|
EP3C16F256C7
IC FPGA 168 I/O 256FBGA
|
Cyclone® III | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 256-LBGA | 256-FBGA (17x17) | Not Verified | 15408 |
|
EP4SGXHF35C2NGB
IC FPGA 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | - |
