| Image | Mfr Part # | Series | Package | Product Status | Function | Delay to 1st Tap | Available Total Delays | Number of Independent Delays | Voltage - Supply | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

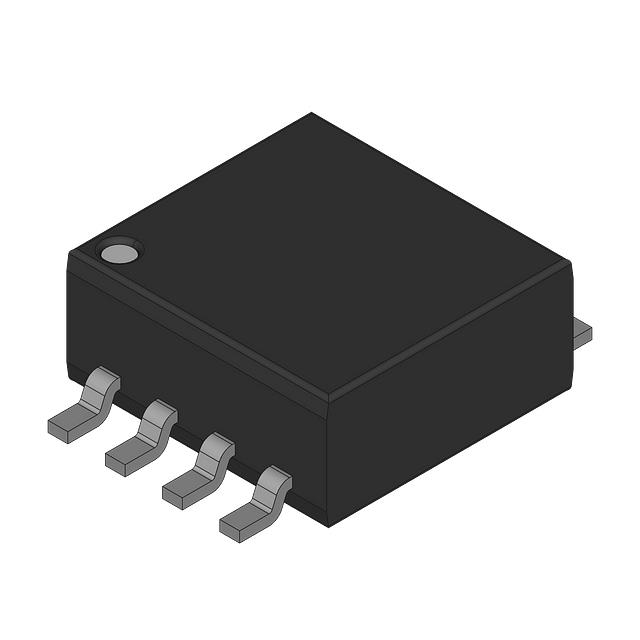

DS1100U-50
IC DELAY LINE 5TAP 50NS 8UMAX
|
- | Tube | Discontinued at | Nonprogrammable | 10ns | 50ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1013M-150
IC DELAY LINE 150NS 8DIP
|
- | Tube | Obsolete | Multiple, NonProgrammable | 150ns | 150ns | 3 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1045S-4
IC DELAY LINE 16TAP 69NS 16SOIC
|
- | Tube | Obsolete | Multiple, Programmable | 9ns | 69ns | 2 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1007S-12
IC DELAY LINE PROG 16SOIC
|
- | Tube | Obsolete | Multiple, NonProgrammable | 3ns | 3ns ~ 10ns, 9ns ~ 40ns | 7 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1035Z-25
DELAY LINE 35TAP 25NS 8-SOIC
|
- | Bulk | Obsolete | - | - | - | - | - | - | - |
|
DS1005M-100
IC DELAY LINE 5TAP 100NS 8DIP
|
- | Tube | Obsolete | Nonprogrammable | 20ns | 100ns | 1 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1004Z-2
IC DELAY LINE 5TAP 13NS 8SOIC
|
- | Tube | Obsolete | Nonprogrammable | 5ns | 13ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1007S-13
IC DELAY LINE PROG 16SOIC
|
- | Tube | Obsolete | Multiple, NonProgrammable | 3ns | 3ns ~ 10ns, 9ns ~ 40ns | 7 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
MXD1013UA050
3-IN-1 SILICON DELAY LINE
|
- | Bulk | Active | Multiple | 50ns | 50ns | 3 | 4.75V ~ 5.25V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1021S-25
IC DEL LN 256TAP 73.75NS 16SOIC
|
- | Tube | Obsolete | Programmable | 10ns | 73.75ns | 1 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1135LU-25
IC DELAY LINE 25NS 8UMAX
|
- | Tube | Obsolete | Multiple, NonProgrammable | 25ns | 25ns | 3 | 2.7V ~ 3.6V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1100U-60+
IC DELAY LINE 5TAP 60NS 8UMAX
|
- | Tube | Active | Nonprogrammable | 12ns | 60ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
