| Image | Mfr Part # | Series | Package | Product Status | Function | Delay to 1st Tap | Available Total Delays | Number of Independent Delays | Voltage - Supply | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1013M-12+
IC DELAY LINE 12NS 8DIP
|
- | Tube | Obsolete | Multiple, NonProgrammable | 12ns | 12ns | 3 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1123LE-200+
IC DELAY LN 256TAP 510NS 16TSSOP
|
- | Tube | Obsolete | 1-Shot, Programmable | 16.5ns | 510ns | 1 | 3V ~ 3.6V | Surface Mount | 16-TSSOP (0.173", 4.40mm Width) |
|
DS1013S-25+T&R
IC DELAY LINE 25NS 16SOIC
|
- | Tape & Reel (TR) | Obsolete | Multiple, NonProgrammable | 25ns | 25ns | 3 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1000Z-25N
DS1000 5-TAP SILICON DELAY LINE
|
- | Bulk | Active | Nonprogrammable | 5ns | 25ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1045S-4
IC DELAY LINE 16TAP 69NS 16SOIC
|
- | Tube | Obsolete | Multiple, Programmable | 9ns | 69ns | 2 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1013S-10
IC DELAY LINE 10NS 16SOIC
|
- | Tube | Obsolete | Multiple, NonProgrammable | 10ns | 10ns | 3 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1013-30
IC DELAY LINE 30NS 14DIP
|
- | Tube | Obsolete | Multiple, NonProgrammable | 30ns | 30ns | 3 | 4.75V ~ 5.25V | Through Hole | 14-DIP (0.300", 7.62mm) |
|
DS1023S-50+T
IC DEL LN 256TAP 127.5NS 16SOIC
|
- | Tape & Reel (TR) | Active | 1-Shot, Programmable | 16.5ns | 127.5ns | 1 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1005S-150
IC DELAY LINE 5TAP 150NS 16SOIC
|
- | Tube | Obsolete | Nonprogrammable | 30ns | 150ns | 1 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|

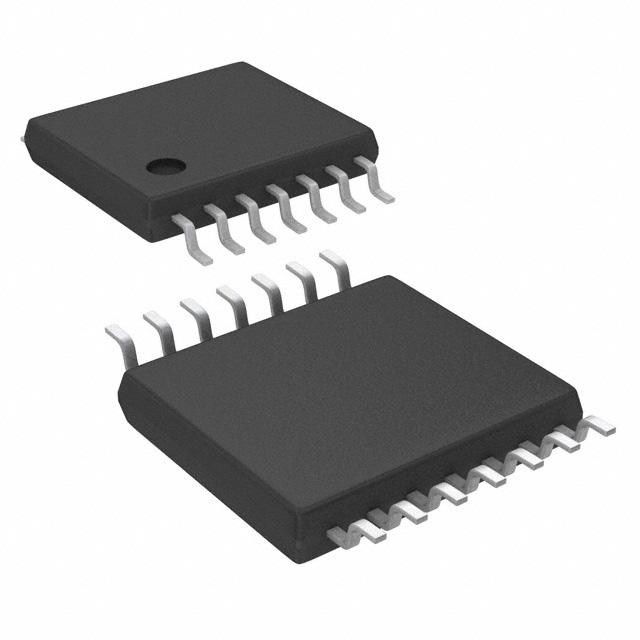

DS1110E-100+
IC DELAY LN 10TAP 100NS 14TSSOP
|
- | Bulk | Active | Nonprogrammable | 10ns | 100ns | 1 | 4.75V ~ 5.25V | Surface Mount | 14-TSSOP (0.173", 4.40mm Width) |
|
DS1100Z-50
IC DELAY LINE 5TAP 50NS 8SOIC
|
- | Tube | Obsolete | Nonprogrammable | 10ns | 50ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1135LZ-25+T&R
IC DELAY LINE 25NS 8SOIC
|
- | Tape & Reel (TR) | Active | Multiple, NonProgrammable | 25ns | 25ns | 3 | 2.7V ~ 3.6V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
