| Image | Mfr Part # | Series | Package | Product Status | Type | Circuit | Current - Output High, Low | Voltage Supply Source | Voltage - Supply | Operating Temperature | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
M38510/30901BFA
DATA SELECTORS/MULTIPLEXERS 16-C
|
54LS | Tube | Active | Data Selector/Multiplexer | 1 x 8:1 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|

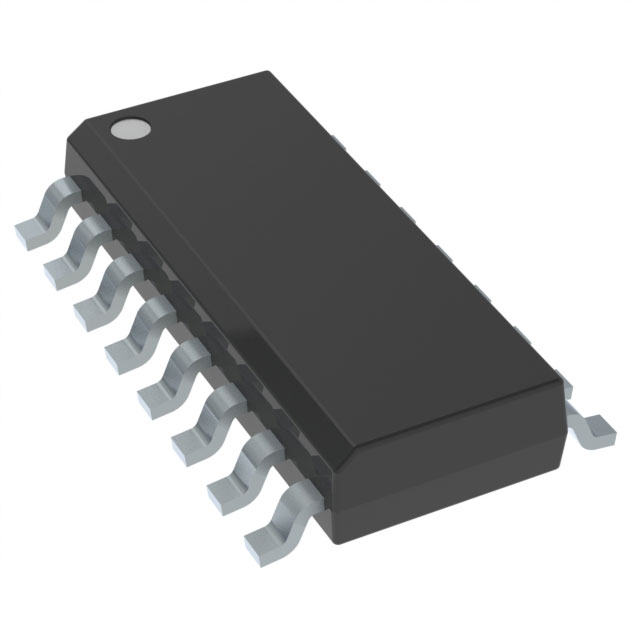

SN74LS153NSR
IC MULTIPLEXER 2 X 4:1 16SO
|
74LS | Tape & Reel (TR) | Active | Multiplexer | 2 x 4:1 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Surface Mount |
|
|
SN54LS145J
BCD-TO-DECIMAL DECODERS/DRIVERS
|
54LS | Tube | Active | Decoder | 1 x 4:10 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
SN74LS257BN3
MULTIPLEXER, LS SERIES TTL
|
74LS | Bulk | Active | Multiplexer | 4 x 2:1 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Through Hole |
|
DM54LS157J/883C
MUX, 4-FUNC, 2 LINE INPUT, TTL
|
54LS | Bulk | Active | Data Selector/Multiplexer | 4 x 2:1 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
|
SNJ54LS157FK
QUADRUPLE 2-LINE TO 1-LINE DATA
|
54LS | Tube | Active | Data Selector/Multiplexer | 4 x 2:1 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
54LS47DMQB
DECODER/DRIVER
|
54LS | Bulk | Active | Decoder | 1 x 4:7 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
|
SNJ54LS258BJ
QUADRUPLE 2-LINE TO 1-LINE DATA
|
54LS | Tube | Active | Data Selector/Multiplexer | 4 x 2:1 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
SN74S139AD
IC DECODER/DEMUX 1X2:4 16SOIC
|
74S | Tube | Active | Decoder/Demultiplexer | 1 x 2:4 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Surface Mount |
|

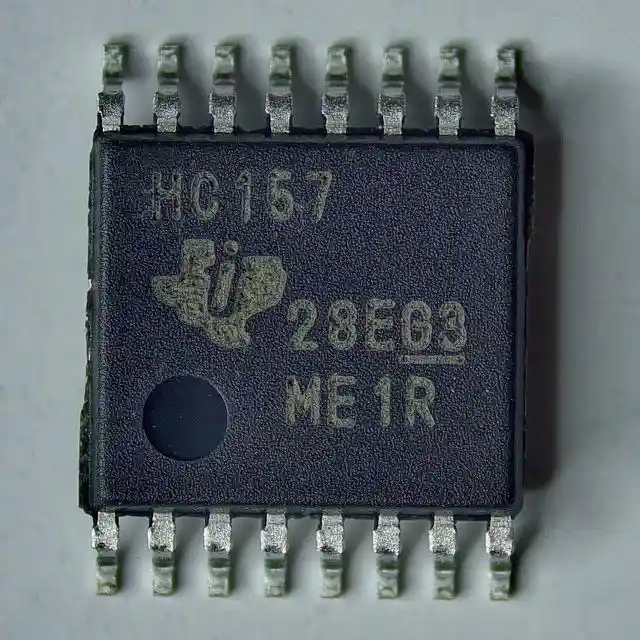

SN74HC157PWR
IC MULTIPLEXER 4 X 2:1 16TSSOP
|
74HC | Tape & Reel (TR) | Active | Multiplexer | 4 x 2:1 | - | Single Supply | 2V ~ 6V | -40°C ~ 85°C | Surface Mount |
|
|
SN54LS156J
DUAL 2-LINE TO 4-LINE DECODERS/D
|
54LS | Tube | Active | Decoder/Demultiplexer | 2 x 2:4 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
|
54LS298FMQB
MULTIPLEXER, LS SERIES TTL
|
54LS | Bulk | Active | Multiplexer | 4 x 2:1 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
