| Image | Mfr Part # | Series | Package | Product Status | Type | Circuit | Current - Output High, Low | Voltage Supply Source | Voltage - Supply | Operating Temperature | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

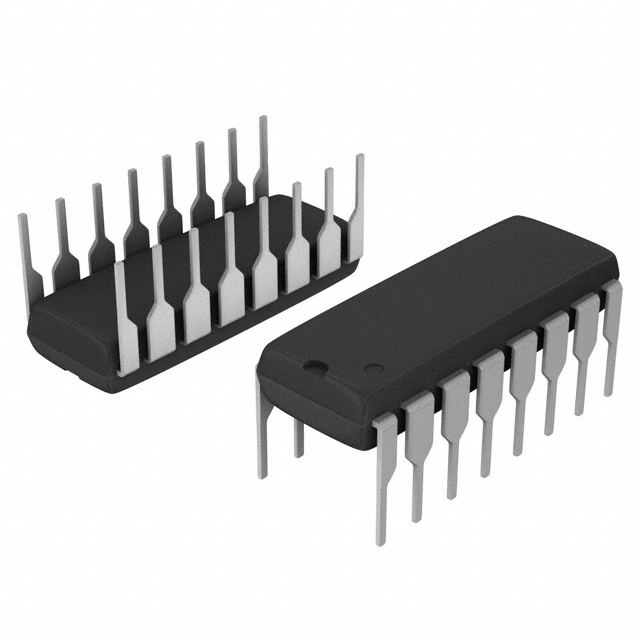

SN74LS670N3
IC REGISTER FILE 1 X 1:1 16DIP
|
74LS | Bulk | Active | Register File | 1 x 1:1 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C (TA) | Through Hole |
|
74CB3T1G125DBVRG4
IC BUS SWITCH 1 X 1:1 SOT23-5
|
74CB | Tape & Reel (TR) | Discontinued at | Bus Switch | 1 x 1:1 | - | Single Supply | 2.3V ~ 3.6V | -40°C ~ 85°C | Surface Mount |
|
76007012A
DUAL 2-LINE TO 4-LINE DECODERS/D
|
54LS | Tube | Active | Decoder/Demultiplexer | 1 x 2:4 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
54LS670FM
MEMORY IC, TTL, CDFP16
|
54LS | Bulk | Active | Register File | 1 x 1:1 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C (TA) | Surface Mount |
|
|
SNJ54LS670W
4-BY-4 REGISTER FILES WITH 3-STA
|
54LS | Tube | Active | Register File | 1 x 1:1 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
DM74LS157N
IC MULTIPLEXER 4 X 2:1 16DIP
|
74LS | Tube | Obsolete | Multiplexer | 4 x 2:1 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Through Hole |
|
74LS298DC
MUX, 4-FUNC, 2 LINE INPUT, TTL
|
74LS | Bulk | Active | Multiplexer | 4 x 2:1 | - | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Through Hole |
|

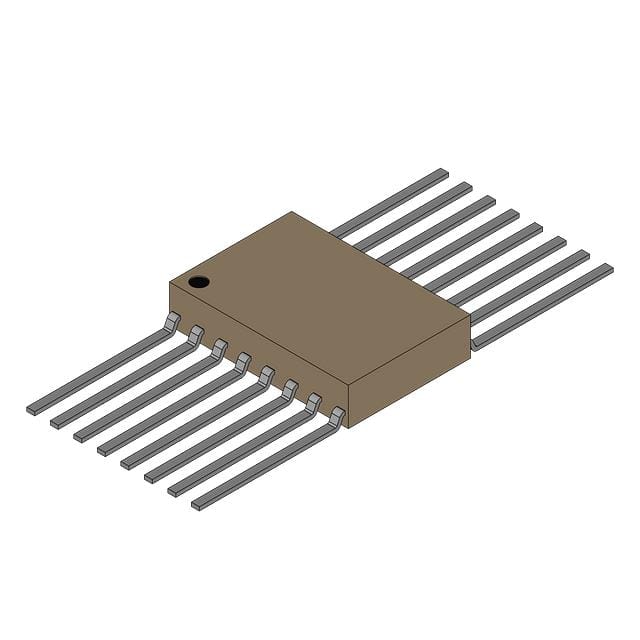

54LS258AFMQB
MULTIPLEXER, LS SERIES
|
54LS | Bulk | Active | Data Selector/Multiplexer | 4 x 2:1 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
|
SNJ54LS145J
BCD-TO-DECIMAL DECODERS/DRIVERS
|
54LS | Tube | Active | Decoder | 1 x 4:10 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
54LS139LMQB
DECODER/DRIVER
|
54LS | Bulk | Active | Decoder/Demultiplexer | 1 x 2:4 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
DM54LS257J/883
MUX, 4-FUNC, 2 LINE INPUT, TTL
|
54LS | Bulk | Active | Data Selector/Multiplexer | 4 x 2:1 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
DM54LS158J/883
MULTIPLEXER, LS SERIES TTL
|
54LS | Bulk | Active | Data Selector/Multiplexer | 4 x 2:1 | - | Single Supply | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
