| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AHC1G08DCKR-NG
PROTOTYPE
|
74AHC | Bulk | Active | AND Gate | 2 | Schmitt Trigger | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74AS20NS
IC GATE NAND 2CH 4-INP 14-SO
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN54LS03J
54LS03 QUADRUPLE 2-INPUT POSITIV
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
CD4001UBE
IC GATE NOR 4CH 2-INP 14DIP
|
4000B | Tube | Active | NOR Gate | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
SNJ54S32J
54S32 QUADRUPLE 2-INPUT POSITIVE
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC1G06MDCKREP
IC BUFFER INVERT 5.5V SC70-5
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
|
SN700453DR
QUAD 2-INPUT NOR GATE
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
SN74AHC08QPWRDL
PROTOTYPE
|
74AHC | Bulk | Active | AND Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|

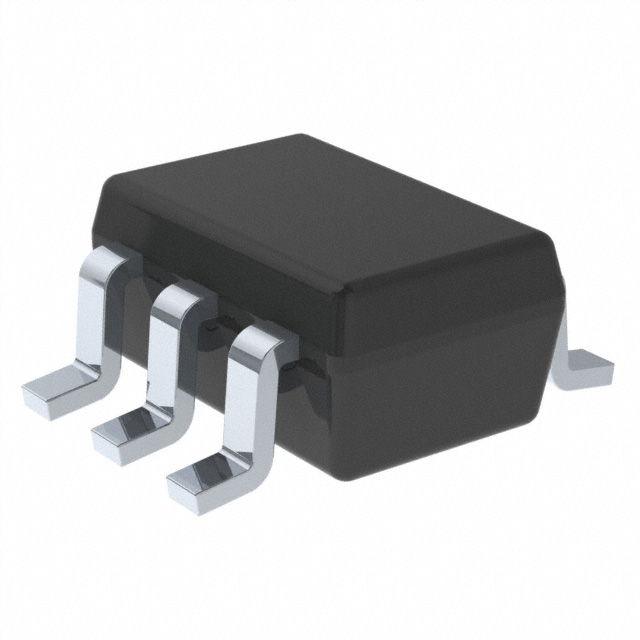

SN74LVC2G04MDCKREP
IC INVERTER 2CH 2-INP SC70-6
|
74LVC | Tape & Reel (TR) | Active | Inverter | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74S15N
AND GATE, S SERIES, 3-INPUT, TTL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC1G10YZPR
IC GATE NAND 1CH 3-INP 6DSBGA
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 3 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|

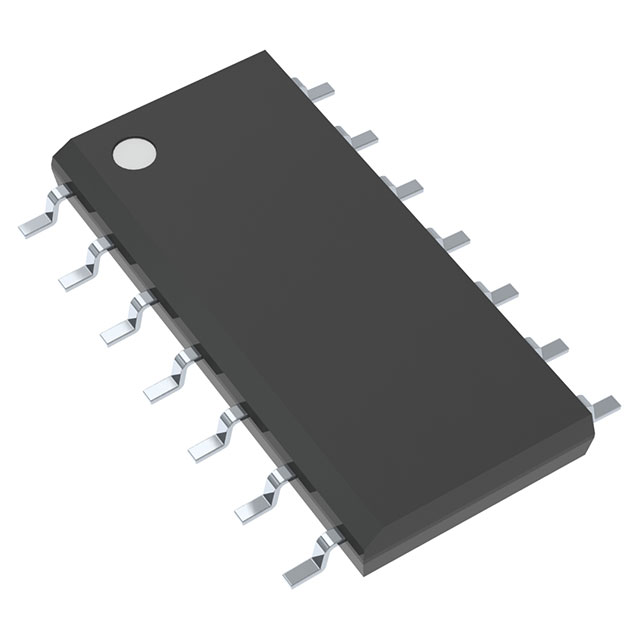

CD4001BCM
IC GATE NOR 4CH 2-INP 14SOIC
|
4000B | Tube | Obsolete | NOR Gate | 2 | - | 3V ~ 15V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
