| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AUP2G14DCKR
IC INVERT SCHMITT 2CH 2IN SC70-6
|
74AUP | Tape & Reel (TR) | Active | Inverter | 2 | Schmitt Trigger | 0.8V ~ 3.6V | 4mA, 4mA | 0.1V ~ 0.88V | 0.6V ~ 2.29V |
|
SN74AUP1G06DRLR
IC INVERTER OD 1CH 1-INP SOT5
|
74AUP | Tape & Reel (TR) | Active | Inverter | 1 | Open Drain | 0.8V ~ 3.6V | -, 4mA | 0.1V ~ 0.45V | 3.6V |
|
SN74AUC2G06DBVR
IC INVERTER OD 2CH 2-INP SOT23-6
|
74AUC | Tape & Reel (TR) | Active | Inverter | 2 | Open Drain | 0.8V ~ 2.7V | -, 9mA | 0V ~ 0.7V | 1.7V |
|
SN74AUP1T08DCKR
IC AND GATE 1CH 2-INP SC-70-5
|
74AUP | Tape & Reel (TR) | Active | AND Gate | 2 | - | 2.3V ~ 3.6V | 4mA, 4mA | 0.35V ~ 0.5V | 1.1V ~ 1.19V |
|
SN74AUC1G14DBVRG4
IC INVERTER 1CH 1-INP SOT23-5
|
74AUC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 0.8V ~ 2.7V | 9mA, 9mA | 0.22V ~ 0.58V | 0.5V ~ 1.56V |
|
SN74AUC1GU04YZAR
IC INVERTER 1CH 1-INP 5DSBGA
|
74AUC | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 0.8V ~ 2.7V | 9mA, 9mA | - | - |
|
SN74AUP1G00DRY2
IC GATE NAND 1CH 2-INP 6SON
|
74AUP | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
|
SN74AUP1G08DBVT
IC GATE AND 1CH 2-INP SOT23-5
|
74AUP | Tape & Reel (TR) | Active | AND Gate | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
|
SN74AUC2G32DCURE4
IC GATE OR 2CH 2-INP 8VSSOP
|
74AUC | Tape & Reel (TR) | Obsolete | OR Gate | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|
SN74AUP1G32DPWR
IC GATE OR 1CH 2-INP 4X2SON
|
74AUP | Tape & Reel (TR) | Active | OR Gate | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
|
|
SN74AUP1T32DCKR
IC GATE OR SCHMIT 1CH 2IN SC70-5
|
74AUP | Tape & Reel (TR) | Active | OR Gate | 2 | Schmitt Trigger | 2.3V ~ 3.6V | 4mA, 4mA | 0.35V ~ 0.5V | 1.1V ~ 1.19V |
|

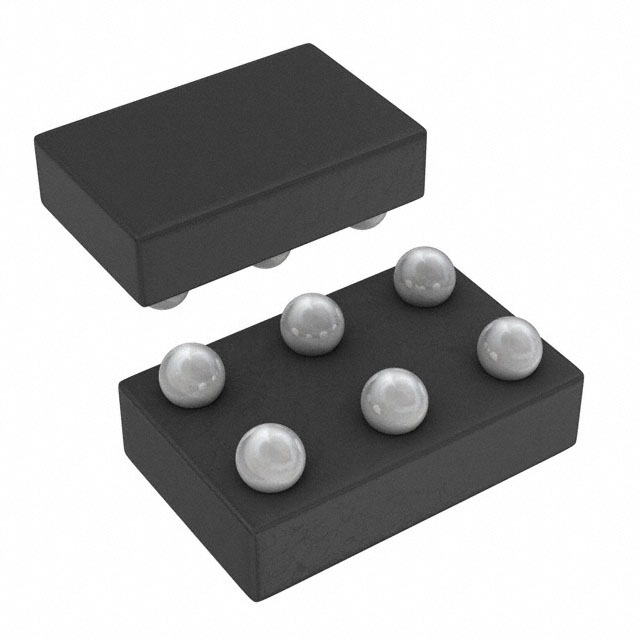

SN74AUP1G08YFPR
IC GATE AND 1CH 2-INP 6DSBGA
|
74AUP | Tape & Reel (TR) | Active | AND Gate | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
