| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LS38NSR
IC GATE NAND OPEN 4CH 2-IN 14SOP
|
74LS | Tape & Reel (TR) | Active | NAND Gate | 2 | Open Collector | 4.75V ~ 5.25V | -, 24mA | 0.8V | 2V |
|
SN74HCT00NG4
IC GATE NAND 4CH 2-INP 14DIP
|
74HCT | Tube | Discontinued at | NAND Gate | 2 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
CD4073BE
IC GATE AND 3CH 3-INP 14DIP
|
4000B | Tube | Active | AND Gate | 3 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
5962-9680201Q2A
MILITARY 6-CH, 2-V TO 5.5-V INVE
|
74AHC | Tube | Active | Inverter | 6 | Schmitt Trigger | 2V ~ 5.5V | 8mA, 8mA | 1.9V ~ 3.35V | 2.2V ~ 3.85V |
|
SN74AHC1G04DBVTG4
IC INVERTER 1CH 1-INP SOT23-5
|
74AHC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74HCT08PWRG4
IC GATE AND 4CH 2-INP 14TSSOP
|
74HCT | Tape & Reel (TR) | Obsolete | AND Gate | 2 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
SN74AC08DBR
IC GATE AND 4CH 2-INP 14SSOP
|
74AC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|
SN74AC04DRE4
IC INVERTER 6CH 1-INP 14SOIC
|
74AC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|

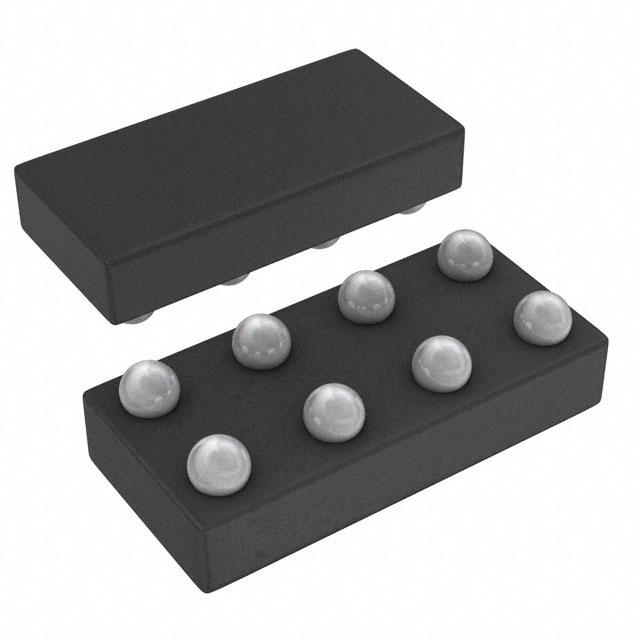

SN74AUC2G08YZTR
IC GATE AND 2CH 2-INP 8DSBGA
|
74AUC | Tape & Reel (TR) | Discontinued at | AND Gate | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|
SN74LS32DRE4
IC GATE OR 4CH 2-INP 14SOIC
|
74LS | Tape & Reel (TR) | Discontinued at | OR Gate | 2 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
|
CD74HCT08MDRDL
PROTOTYPE
|
74HCT | Bulk | Active | AND Gate | 2 | - | 4.5V ~ 5.5V | - | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74LS10D
IC GATE NAND 3CH 3-INP 14SOIC
|
74LS | Tube | Obsolete | NAND Gate | 3 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
