| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LS10D
IC GATE NAND 3CH 3-INP 14SOIC
|
74LS | Tube | Obsolete | NAND Gate | 3 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
SN74AUP1G14DCKR
IC INVERT SCHMITT 1CH 1IN SC70
|
74AUP | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 0.8V ~ 3.6V | 4mA, 4mA | 0.1V ~ 0.88V | 0.6V ~ 2.29V |
|
SN74LS09N
IC GATE AND OP COL 4CH 2IN 14DIP
|
74LS | Tube | Active | AND Gate | 2 | Open Collector | 4.75V ~ 5.25V | -, 8mA | 0.8V | 2V |
|
SN74AHC14BQAR
IC INVERT SCHMITT 6CH 6IN 14WQFN
|
74AHC | Tape & Reel (TR) | Active | Inverter | 6 | Schmitt Trigger | 2V ~ 5.5V | 8mA, 8mA | 1.9V ~ 3.35V | 2.2V ~ 3.85V |
|
CD74HCT08M96G4
IC GATE AND 4CH 2-INP 14SOIC
|
74HCT | Bulk | Active | AND Gate | 2 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
SN74AHC1G86DCKRE4
IC GATE XOR 1CH 2-INP SC70-5
|
74AHC | Tape & Reel (TR) | Discontinued at | XOR (Exclusive OR) | 2 | Schmitt Trigger Input | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74AUP1G14DCKT
IC INVERT SCHMITT 1CH 1IN SC70
|
74AUP | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 0.8V ~ 3.6V | 4mA, 4mA | 0.1V ~ 0.88V | 0.6V ~ 2.29V |
|
SN74AC32DRG4
IC GATE OR 4CH 2-INP 14SOIC
|
74AC | Tape & Reel (TR) | Obsolete | OR Gate | 2 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|
|
SN74HCT14QPWRRBG4
PROTOTYPE
|
74HCT | Bulk | Active | Inverter | 6 | Schmitt Trigger | 4.5V ~ 5.5V | 4mA, 4mA | 1.2V ~ 1.4V | 1.9V ~ 2.1V |
|

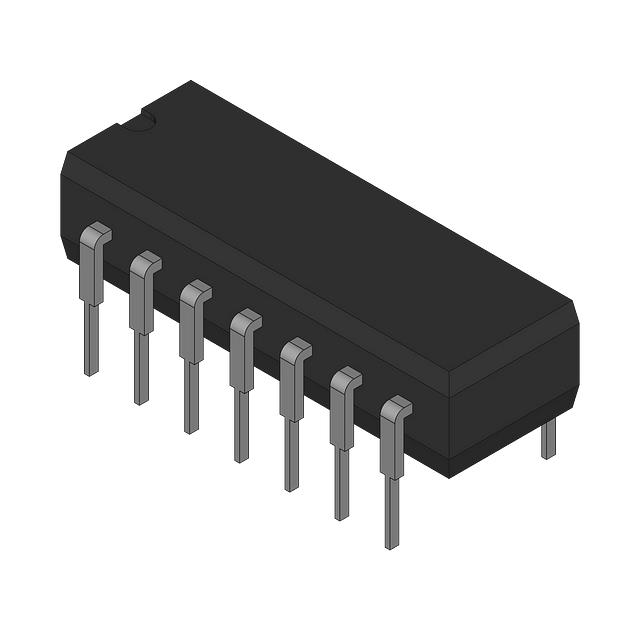

SN74LS05N
IC INV OPEN COL 6CH 1-IN 14DIP
|
74LS | Tube | Obsolete | Inverter | 1 | Open Collector | 4.75V ~ 5.25V | -, 8mA | 0.8V | 2V |
|
CD74AC14M
IC INV SCHMITT 6CH 1-IN 14SOIC
|
74AC | Tube | Discontinued at | Inverter | 1 | Schmitt Trigger | 1.5V ~ 5.5V | 24mA, 24mA | 1.6V | 3.4V |
|
DM74LS132J
NAND GATE, TTL
|
74LS | Bulk | Active | NAND Gate | 2 | Schmitt Trigger Input | 4.75V ~ 5.25V | 400µA, 8mA | 1V | 1.9V |
