| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

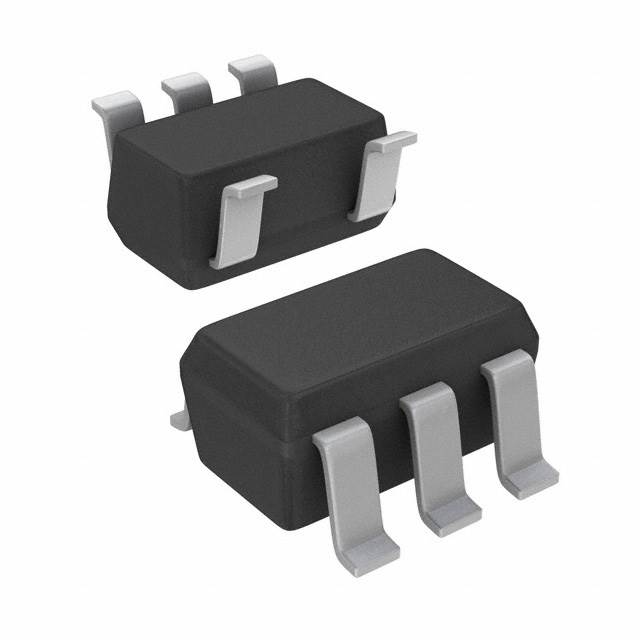

SN74AHC1G08DBV3
IC GATE AND 1CH 2-INP SOT23-5
|
74AHC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SNJ54ALS02J
NOR GATE, ALS SERIES
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC1G08DCKR-P
PROTOTYPE
|
74LVC | Bulk | Active | AND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74AHC86PW
IC GATE XOR 4CH 2-INP 14TSSOP
|
74AHC | Tube | Discontinued at | XOR (Exclusive OR) | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
|
SNJ54LS14J
IC INVERT SCHMITT 6CH 6IN 14CDIP
|
54LS | Tube | Active | Inverter | 6 | Schmitt Trigger | 4.5V ~ 5.5V | 400µA, 4mA | 1V | 1.9V |
|
SN74LVC2G14YZAR
IC INVERT SCHMITT 2CH 2IN 6DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | Inverter | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.3V ~ 1.4V | 1.4V ~ 3.7V |
|
|
SN74LVC1G08QDBVRCT
PROTOTYPE
|
74LVC | Bulk | Active | AND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
|
54LS54LM
AND-OR-INVERT GATE, LS SERIES, 1
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
SNJ54LS05FK
IC INVERTER 6CH 6-INP 20LCCC
|
54LS | Tube | Active | Inverter | 6 | Open Collector | 4.5V ~ 5.5V | 100µA, 4mA | 0.7V | 2V |
|

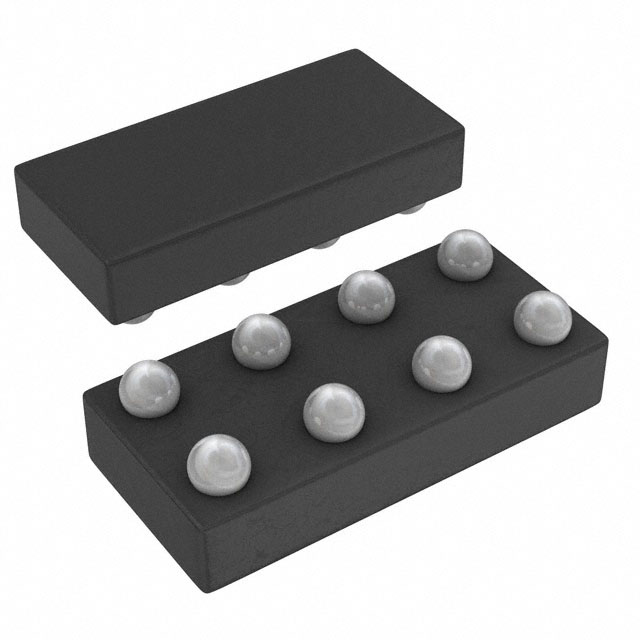

SN74AUC2G32YZPR
IC GATE OR 2CH 2-INP 8DSBGA
|
74AUC | Tape & Reel (TR) | Active | OR Gate | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|
SN74AUC2G02YZPR
IC GATE NOR 2CH 2-INP 8DSBGA
|
74AUC | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|
SN74LVC3G14DCUTE4
IC INVERT SCHMITT 3CH 3IN 8VSSOP
|
74LVC | Tape & Reel (TR) | Obsolete | Inverter | 3 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.3V ~ 1.4V | 1.4V ~ 3.7V |
