| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

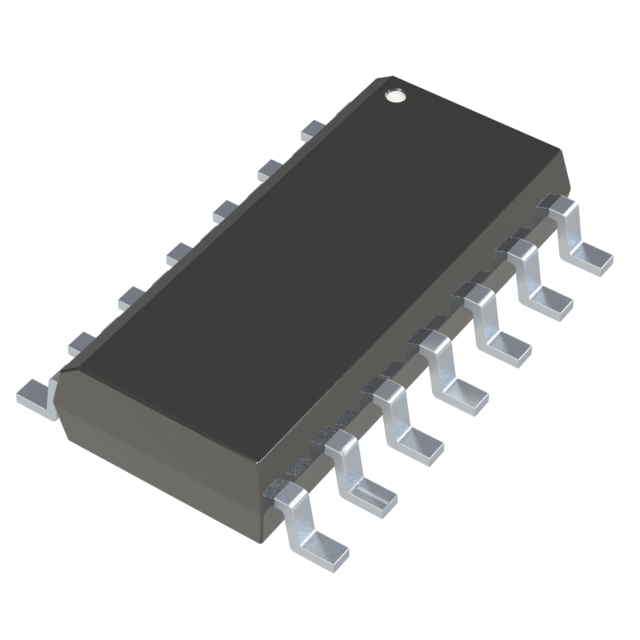

SN74LV21APWTE4
IC GATE AND 2CH 4-INP 14TSSOP
|
74LV | Tape & Reel (TR) | Obsolete | AND Gate | 4 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
JM4023ABDA
CMOS TRIPLE 3-INPUT NAND GATE
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC1GU04DCK3
PROTOTYPE
|
74LVC | Bulk | Active | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.41V ~ 1.38V | 1.24V ~ 4.13V |
|
40014BDM
INVERTER, CMOS
|
- | Bulk | Active | Inverter | 1 | Schmitt Trigger | - | - | 6V | 12.9V |
|
SN74LV02ADBRE4
IC GATE NOR 4CH 2-INP 14SSOP
|
74LV | Tape & Reel (TR) | Discontinued at | NOR Gate | 2 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
SN74LV04APWRG4
IC INVERTER 6CH 1-INP 14TSSOP
|
74LV | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
SN74AUC2G00DCTRE4
IC GATE NAND 2CH 2-INP SM8
|
74AUC | Bulk | Active | NAND Gate | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|
|
SN74LV6T06PWR
IC INVERTER 6CH 6-INP 14TSSOP
|
74LV | Tape & Reel (TR) | Active | Inverter | 6 | Open Drain | 1.65V ~ 5.5V | -, 8mA | 0.5V ~ 0.85V | 1.1V ~ 2V |
|
SN74AUC1G32DBVRG4
IC GATE OR 1CH 2-INP SOT23-5
|
74AUC | Tape & Reel (TR) | Discontinued at | OR Gate | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|
SN74LV14ADRE4
IC HEX SCHMITT-TRIG INV 14-SOIC
|
74LV | Bulk | Active | Inverter | 1 | Schmitt Trigger | 2V ~ 5.5V | 12mA, 12mA | 0.75V ~ 1.5V | 1.75V ~ 3.5V |
|
SN74AHC05DR
IC INVERTER OD 6CH 1-INP 14SOIC
|
74AHC | Tape & Reel (TR) | Active | Inverter | 1 | Open Drain | 2V ~ 5.5V | -, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74LVC00ADRQ1
AUTOMOTIVE FOUR-CHANNEL, TWO-INP
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 2V ~ 3.6V | 24mA, 24mA | 0.8V | 2V |
