| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4071BPWR
IC GATE OR 4CH 2-INP 14TSSOP
|
4000B | Tape & Reel (TR) | Active | OR Gate | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
CD4030BMT
IC GATE XOR 4CH 2-INP 14SOIC
|
4000B | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SN74AHC1G00DBVT
IC GATE NAND 1CH 2-INP SOT23-5
|
74AHC | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|

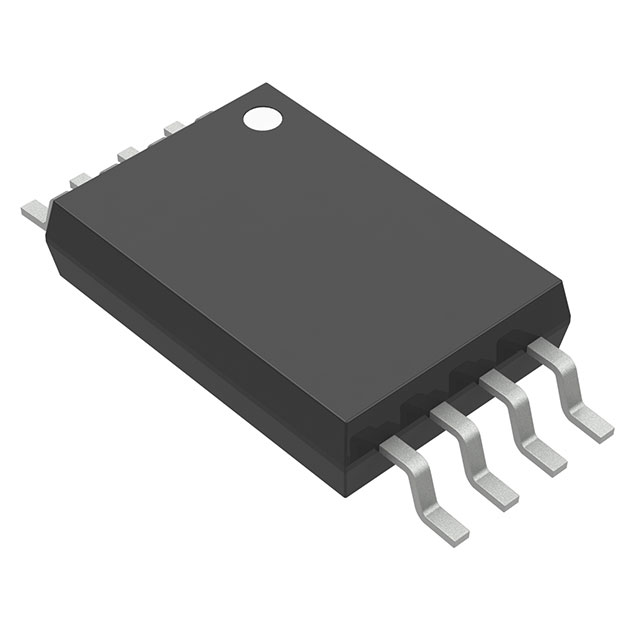

CD40107BPWR
IC GATE NAND OD 2CH 2-INP 8TSSOP
|
4000B | Tape & Reel (TR) | Active | NAND Gate | 2 | Open Drain | 3V ~ 18V | -, 68mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SN74AHC32MPWREP
IC GATE OR 4CH 2-INP 14TSSOP
|
74AHC | Tape & Reel (TR) | Active | OR Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74AHC1G32DCKT
IC GATE OR 1CH 2-INP SC70-5
|
74AHC | Tape & Reel (TR) | Discontinued at | OR Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
CD4070BNSR
IC GATE XOR 4CH 2-INP 14SOP
|
4000B | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SN74AHC132DRE4
IC GATE NAND 4CH 2-INP 14SOIC
|
74AHC | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | Schmitt Trigger | 2V ~ 5.5V | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V |
|
CD4093BM96E4
IC GATE NAND 4CH 2-INP 14SOIC
|
4000B | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | Schmitt Trigger | 3V ~ 18V | 3.4mA, 3.4mA | 0.9V ~ 4V | 3.6V ~ 10.8V |
|
SN74AHC04DRG4
IC INVERTER 6CH 1-INP 14SOIC
|
74AHC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
CD4093BEE4
IC GATE NAND 4CH 2-INP 14DIP
|
4000B | Tube | Discontinued at | NAND Gate | 2 | Schmitt Trigger | 3V ~ 18V | 3.4mA, 3.4mA | 0.9V ~ 4V | 3.6V ~ 10.8V |
|
SN74AHC1GU04DRLR
IC INVERTER 1CH 1-INP SOT5
|
74AHC | Tape & Reel (TR) | Active | Inverter | 1 | - | 2V ~ 5.5V | 8mA, 8mA | 0.3V ~ 1.1V | 1.7V ~ 4.4V |
