| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74HC7001NSRG4
IC GATE AND SCHMIT 4CH 2IN 14SOP
|
74HC | Tape & Reel (TR) | Obsolete | AND Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
CD74HC00ME4
IC GATE NAND 4CH 2-INP 14SOIC
|
74HC | Tube | Discontinued at | NAND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74AHC1G04DBVT
IC INVERTER 1CH 1-INP SOT23-5
|
74AHC | Tape & Reel (TR) | Active | Inverter | 1 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|

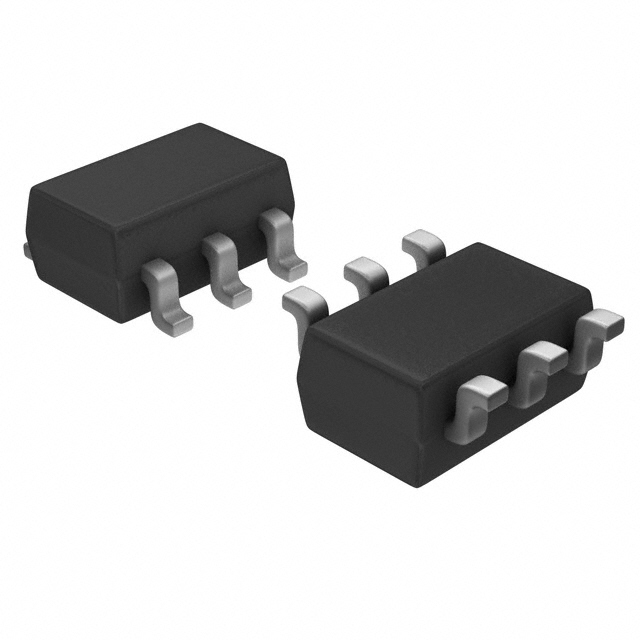

SN74LVC2G04DBVT
IC INVERTER 2CH 2-INP SOT23-6
|
74LVC | Tape & Reel (TR) | Active | Inverter | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
CD4081BE-NG
PROTOTYPE
|
4000B | Bulk | Active | AND Gate | 2 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
SN74HC00QPWRNSG4
PROTOTYPE
|
74HC | Bulk | Active | NAND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
CD4069UBPWRE4
IC INVERTER 6CH 1-INP 14TSSOP
|
4000B | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
SN74AHC1G32DCK3
IC GATE OR 1CH 2-INP SC70-5
|
74AHC | Tape & Reel (TR) | Active | OR Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
CD4001BPWR
IC GATE NOR 4CH 2-INP 14TSSOP
|
4000B | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
SN74LVC32APWR
IC GATE OR 4CH 2-INP 14TSSOP
|
74LVC | Tape & Reel (TR) | Active | OR Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74AHC1G08DRLR
IC GATE AND 1CH 2-INP SOT5
|
74AHC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74LVC1G04DBVR
IC INVERTER 1CH 1-INP SOT23-5
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
