| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC1G86MDCKREP
IC GATE XOR 1CH 2-INP SC70-5
|
74LVC | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LS09DG4
IC GATE AND OPEN 4CH 2-IN 14SOIC
|
74LS | Bulk | Discontinued at | AND Gate | 2 | Open Collector | 4.75V ~ 5.25V | -, 8mA | 0.8V | 2V |
|
SN74HC05DBRG4
IC INVERTER OD 6CH 1-INP 14SSOP
|
74HC | Tape & Reel (TR) | Obsolete | Inverter | 1 | Open Drain | 2V ~ 6V | -, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74LS86ADRE4
IC GATE XOR 4CH 2-INP 14SOIC
|
74LS | Tape & Reel (TR) | Discontinued at | XOR (Exclusive OR) | 2 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
|
CD74HC14M96G4
IC INV SCHMITT 6CH 1-IN 14SOIC
|
74HC | Tape & Reel (TR) | Obsolete | Inverter | 1 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
SN74LV1T32DBVRG4
IC GATE OR 1CH 2-INP SOT23-5
|
74LV | Tape & Reel (TR) | Discontinued at | OR Gate | 2 | - | 1.6V ~ 5.5V | 8mA, 8mA | 0.58V ~ 0.8V | 0.94V ~ 2.1V |
|
SN74LV6T14BQAR
IC INVERT SCHMITT 6CH 6IN 14WQFN
|
74LV | Tape & Reel (TR) | Active | Inverter | 6 | Schmitt Trigger | 1.6V ~ 5.5V | 8mA, 8mA | 0.5V ~ 0.85V | 1.1V ~ 2V |
|
SN74HC86NG4
IC GATE XOR 4CH 2-INP 14DIP
|
74HC | Tube | Discontinued at | XOR (Exclusive OR) | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74LVC2G06DCKR
IC INVERTER OD 2CH 2-INP SC70-6
|
74LVC | Tape & Reel (TR) | Active | Inverter | 2 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|

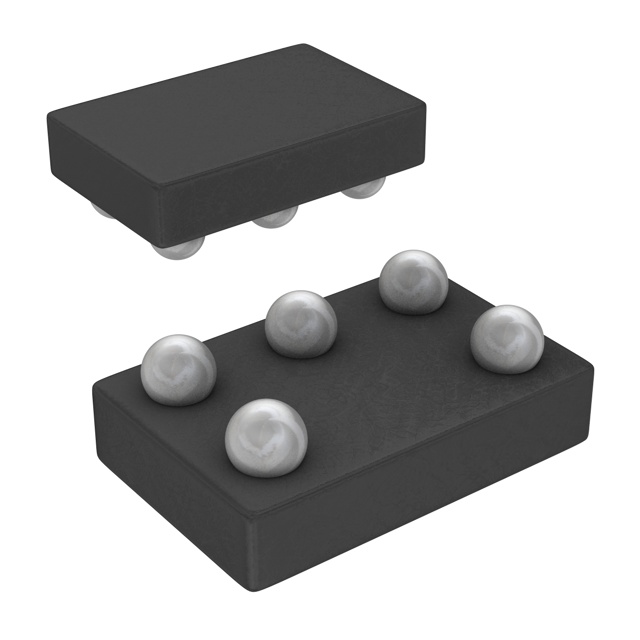

SN74LVC1G06YZPR
IC BUF INVERT 5.5V 5DSBGA/5WCSP
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
|
CD74HC32MG4
IC GATE OR 4CH 2-INP 14SOIC
|
74HC | Tube | Discontinued at | OR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74LVC1G04QDBVRVS
MOS LOGIC AUTOMOTIVE
|
74LVC | Bulk | Active | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
