| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC1G00DBV3
MOS GENERAL PURP LOG
|
74LVC | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC14ADGVR
IC INVERTER 6CH 1-INP 14TVSOP
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 1.65V ~ 3.6V | 24mA, 24mA | 0.15V ~ 0.8V | 1.3V ~ 2V |
|
SN74LVC1G38DPWR
IC GATE NAND OD 1CH 2-INP 5X2SON
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 2 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.7V ~ 0.8V | 1.2V ~ 2V |
|

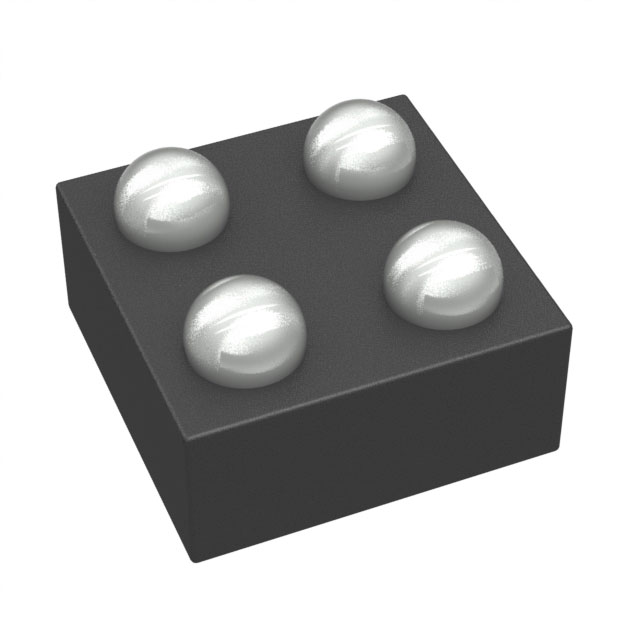

SN74LVC1G04YZVR
IC INVERTER 1CH 1-INP 4DSBGA
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|

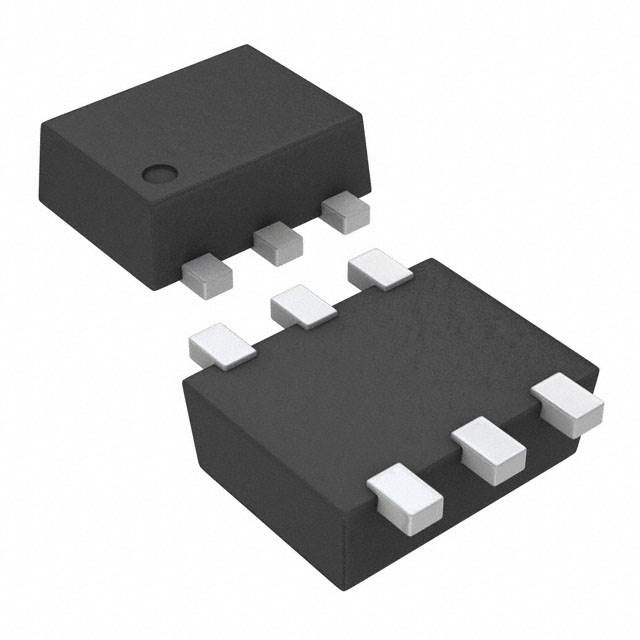

SN74LVC2G04DRLR
IC INVERTER 2CH 2-INP 6SOT
|
74LVC | Tape & Reel (TR) | Active | Inverter | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC02ANSR
IC GATE NOR 4CH 2-INP 14SOP
|
74LVC | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC04ADRG3
IC INVERTER 6CH 1-INP 14SOIC
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC2G14DBVRG4
IC INVERTER 2CH 2-INP SOT23-6
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.3V ~ 1.4V | 1.4V ~ 3.7V |
|
SN74LVC3GU04YEPR
IC INVERTER 3CH 3-INP 8DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | Inverter | 3 | - | 1.65V ~ 5.5V | 32mA, 32mA | - | - |
|
SN74LVC04APWT
IC INVERTER 6CH 1-INP 14TSSOP
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
CD4068BNS
AND/NAND GATE, 4000/14000/40000
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SNJ54H55W
AND-OR-INVERT GATE, H SERIES
|
* | Bulk | Active | - | - | - | - | - | - | - |
