| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN7404NSR
IC INVERTER 6CH 1-INP 14SOP
|
7400 | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 4.75V ~ 5.25V | 400µA, 16mA | 0.8V | 2V |
|

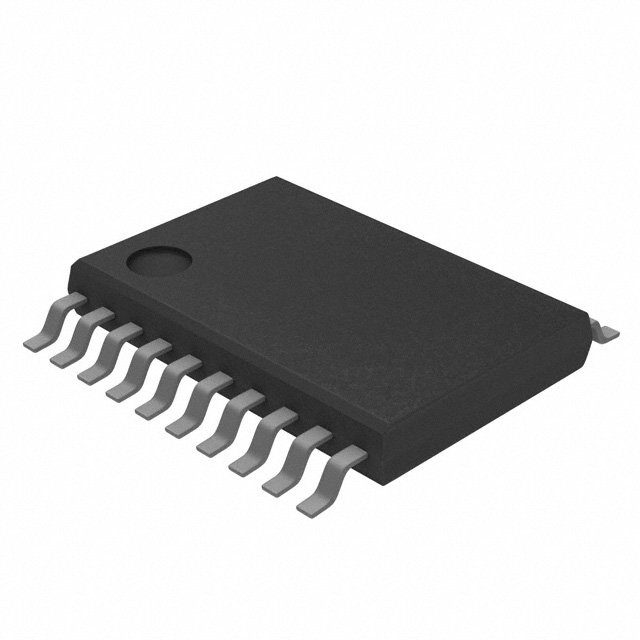

74ACT11004PWRE4
IC INVERTER 6CH 1-INP 20TSSOP
|
74ACT | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
SN74LV86APW
IC GATE XOR 4CH 2-INP 14TSSOP
|
74LV | Tube | Discontinued at | XOR (Exclusive OR) | 2 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
SN74LVC1G86DCKTG4
IC GATE XOR 1CH 2-INP SC70-5
|
74LVC | Tape & Reel (TR) | Discontinued at | XOR (Exclusive OR) | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LS136NE4
4-CH, 2-INPUT, 4.75-V TO 5.25-V
|
74LS | Tube | Active | XOR (Exclusive OR) | 2 | Open Collector | 4.75V ~ 5.25V | 100µA, 8mA | 0.8V | 2V |
|
74LVC2G132DCUTG4
IC GATE NAND 2CH 2-INP 8VSSOP
|
74LVC | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
SN74ALVC08DR
IC GATE AND 4CH 2-INP 14SOIC
|
74ALVC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|

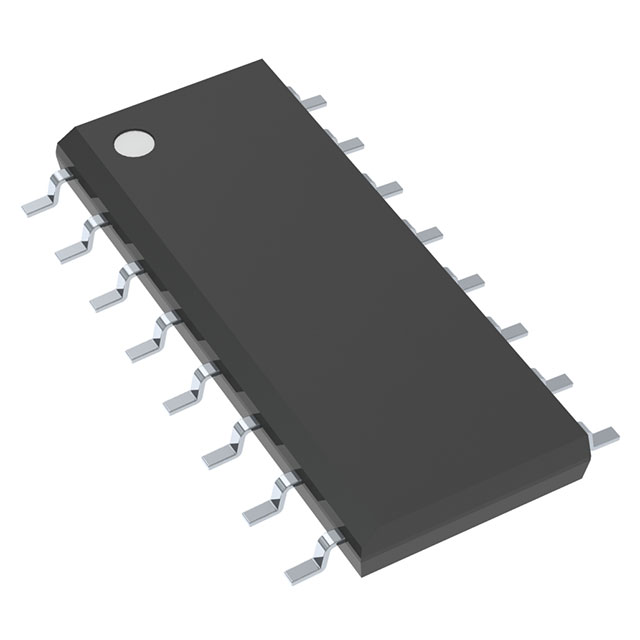

74ACT11008DR
IC GATE AND 4CH 2-INP 16SOIC
|
74ACT | Tape & Reel (TR) | Obsolete | AND Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
SN74LV14ADGVR
IC INVERTER 6CH 1-INP 14TVSOP
|
74LV | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 2V ~ 5.5V | 12mA, 12mA | 0.75V ~ 1.5V | 1.75V ~ 3.5V |
|
SN74LVC1G10YEPR
IC GATE NAND 1CH 3-INP 6DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | NAND Gate | 3 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
|
SN74LV132ADGVR
IC GATE NAND 4CH 2-INP 14TVSOP
|
74LV | Tape & Reel (TR) | Active | NAND Gate | 2 | Schmitt Trigger | 2V ~ 5.5V | 12mA, 12mA | 0.75V ~ 1.5V | 1.75V ~ 3.5V |
|
|
SN74LVC1G00DCKR-P
PROTOTYPE
|
74LVC | Bulk | Active | NAND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
