| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LS08DRE4
IC GATE AND 4CH 2-INP 14SOIC
|
74LS | Tape & Reel (TR) | Discontinued at | AND Gate | 2 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|

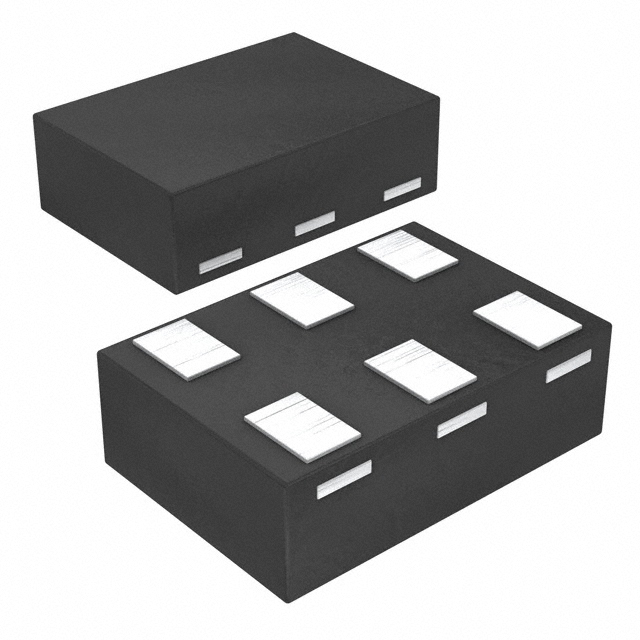

SN74LVC1G14QDRYRQ1
IC INVERT SCHMITT 1CH 1-IN 6USON
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
M38510/30009BCA
MILITARY SINGLE 8-INPUT, 4.5-V T
|
54LS | Tube | Active | NAND Gate | 8 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
|
SN74ACT04PW
IC INVERTER 6CH 1-INP 14TSSOP
|
74ACT | Tube | Discontinued at | Inverter | 1 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
|
SN54LS32J
MILITARY 4-CH, 2-INPUT, 4.5-V TO
|
54LS | Tube | Active | OR Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
|
|
SN74ACT86PWR
IC GATE XOR 4CH 2-INP 14TSSOP
|
74ACT | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
DM7414N
IC INVERT SCHMITT 6CH 1-IN 14DIP
|
7400 | Tube | Obsolete | Inverter | 1 | Schmitt Trigger | 4.75V ~ 5.25V | 800µA, 16mA | 0.6V | 2V |
|
SN74LVC2G86DCURG4
IC GATE XOR 2CH 2-INP 8VSSOP
|
74LVC | Tape & Reel (TR) | Discontinued at | XOR (Exclusive OR) | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
SN74LS38DBR
IC GATE NAND OPEN 4CH 2IN 14SSOP
|
74LS | Tape & Reel (TR) | Active | NAND Gate | 2 | Open Collector | 4.75V ~ 5.25V | -, 24mA | 0.8V | 2V |
|
SN7406DRG4
IC INVERTER OPEN 6CH 1-IN 14SOIC
|
7400 | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Open Collector | 4.75V ~ 5.25V | -, 40mA | 0.8V | 2V |
|
|
M38510/32102BCA
MILITARY 4-CH, 2-INPUT, 4.5-V TO
|
54LS | Tube | Active | NAND Gate | 2 | Open Collector | 4.5V ~ 5.5V | 4mA | 0.7V | 2V |
|
|
SN74ACT32DBR
IC GATE OR 4CH 2-INP 14SSOP
|
74ACT | Tape & Reel (TR) | Active | OR Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
