| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SNJ54F11W
MILITARY 3-CH, 3-INPUT, 4.5-V TO
|
54F | Tube | Active | AND Gate | 3 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|

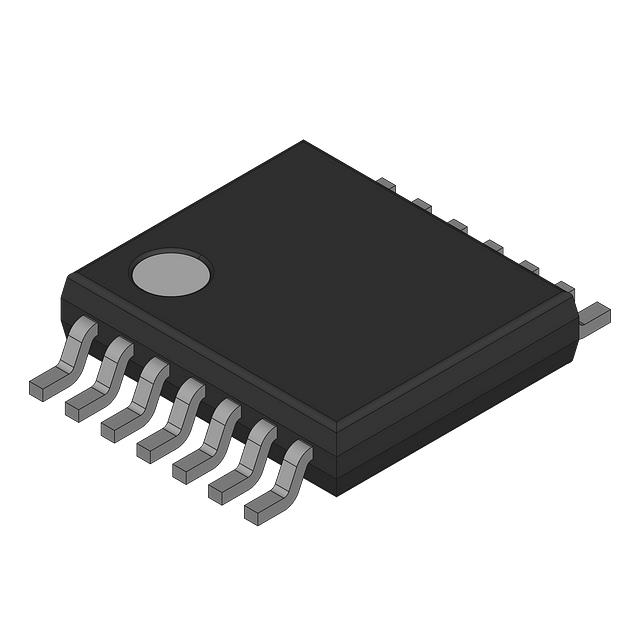

SN74HC21APWR
IC GATE AND 2CH 4-INP 14TSSOP
|
74HC | Bulk | Active | AND Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74HC03NS
IC GATE NAND OD 4CH 2-INP 14SO
|
74HC | Tube | Discontinued at | NAND Gate | 2 | Open Drain | 2V ~ 6V | -, 5.2mA | 0.1V ~ 0.26V | 1.5V ~ 4.2V |
|
|
SN74LV4T32PWR
IC GATE OR 4CH 2-INP 14TSSOP
|
74LV | Tape & Reel (TR) | Active | OR Gate | 2 | - | 1.6V ~ 5.5V | 8mA, 8mA | 0.5V ~ 0.85V | 1.1V ~ 2V |
|
SN74HC08DRG4
IC GATE AND 4CH 2-INP 14SOIC
|
74HC | Tape & Reel (TR) | Discontinued at | AND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
M38510/30007B2A
MILITARY 2-CH, 4-INPUT, 4.5-V TO
|
54LS | Tube | Active | NAND Gate | 4 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
|
SN74HCT08ANS
IC GATE NOR 2CH 4-INP 14SO
|
74HCT | Bulk | Active | AND Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.8V | 2V |
|
SN74LV10ADBRG4
IC GATE NAND 3CH 3-INP 14SSOP
|
74LV | Tape & Reel (TR) | Obsolete | NAND Gate | 3 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
|
SN54LS132J
IC GATE NAND 4CH 2-INP 14CDIP
|
54LS | Tube | Active | NAND Gate | 2 | Schmitt Trigger | 4.5V ~ 5.5V | 400µA, 4mA | 1V | 1.9V |
|
CD74ACT20M
IC GATE NAND 2CH 4-INP 14SOIC
|
74ACT | Tube | Active | NAND Gate | 4 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
|
SN74LV14APWR-P
PROTOTYPE
|
74LV | Bulk | Active | Inverter | 6 | Schmitt Trigger | 2V ~ 5.5V | 12mA, 12mA | 0.75V ~ 1.5V | 1.75V ~ 3.5V |
|
SN74HC05APWRG4
IC INVERTER OD 6CH 1-INP 14TSSOP
|
74HC | Tape & Reel (TR) | Obsolete | Inverter | 1 | Open Drain | 2V ~ 6V | -, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
