| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
9004DC
IC GATE NAND 2CH 4-INP 14CDIP
|
- | Bulk | Active | NAND Gate | 4 | - | 4.75V ~ 5.25V | 1.2mA, 16mA | 0.85V | 1.8V |
|
|
956DC
IC 2-INP
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
JD54LS32BCA
IC GATE OR 4CH 2-INP 14CERDIP
|
54LS | Bulk | Active | OR Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
|
54S00FM
NAND GATE, TTL
|
54S | Bulk | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | - | - | - |
|

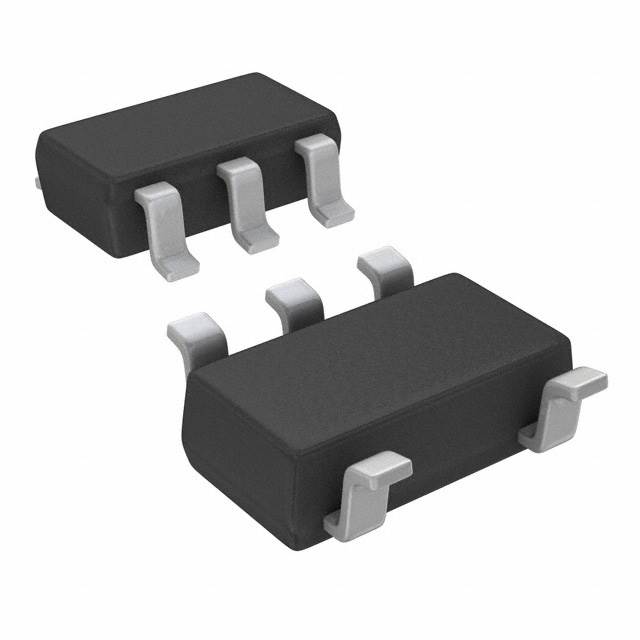

NC7S02M5X
IC GATE NOR 1CH 2-INP SOT23-5
|
7S | Tape & Reel (TR) | Obsolete | NOR Gate | 2 | - | 2V ~ 6V | 2.6mA, 2.6mA | 0.5V | 1.5V |
|
54ACTQ08JRQMLV
IC GATE AND 4CH 2-INP 14CERDIP
|
54ACTQ | Bulk | Active | AND Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
|
10509FM
IC GATE NOR DUAL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
DM74S05M
INVERTER, S SERIES, 6-FUNC, TTL
|
74S | Bulk | Active | Inverter | 1 | Open Collector | 4.75V ~ 5.25V | 250µA, 20mA | 0.8V | 2V |
|
|
74LS00SC
NAND GATE, TTL, PDSO14
|
- | Bulk | Active | - | - | - | - | - | - | - |
|
|
CD4069MW/883
INVERTER, CMOS
|
- | Bulk | Active | Inverter | 1 | - | 3V ~ 15V | 8.8mA, 8.8mA | 1V ~ 3V | 4V ~ 12V |
|
|
JM54AC86SDA-FH
54AC86 - QUAD 2-INPUT EXCLUSIVE-
|
54AC | Bulk | Active | XOR (Exclusive OR) | 2 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|
|
4070BDM
IC GATE XOR
|
- | Bulk | Active | - | - | - | - | - | - | - |
