| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATA6821-TUQY
IC GATE DRVR LOW-SIDE 14SOIC
|
- | Tape & Reel (TR) | Obsolete | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 16V ~ 30V | - | 4A, 4A |
|

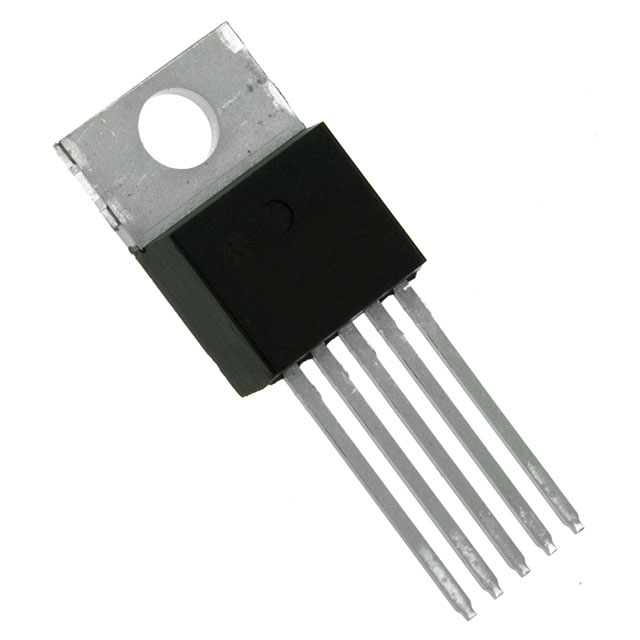

TC4422CAT
IC GATE DRVR LOW-SIDE TO220-5
|
- | Tube | Active | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 9A, 9A |
|
TC4427EUA
IC GATE DRVR LOW-SIDE 8MSOP
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A |
|
MCP14E8T-E/MF
IC GATE DRVR LOW-SIDE 8DFN
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 2A, 2A |
|
MCP14E6T-E/MF
IC GATE DRVR LOW-SIDE 8DFN
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 2A, 2A |
|
|
MCP14A0452-E/MS
IC GATE DRVR LOW-SIDE 8MSOP
|
- | Tube | Active | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 4.5A, 4.5A |
|
TC4431VOA
IC GATE DRVR HI/LOW SIDE 8SOIC
|
- | Tube | Active | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 2.4V | 1.5A, 1.5A |
|
|
TC4426AEUA713
IC GATE DRVR LOW-SIDE 8MSOP
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A |
|
MCP14E5-E/SN
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tube | Active | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 4A, 4A |
|
MIC4422CM-TR
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tape & Reel (TR) | Discontinued at | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 9A, 9A |
|
TC4426AEMF713
IC GATE DRVR LOW-SIDE 8DFN
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A |
|
MIC4223YM-TR
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 4A, 4A |
