| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC4421AVAT

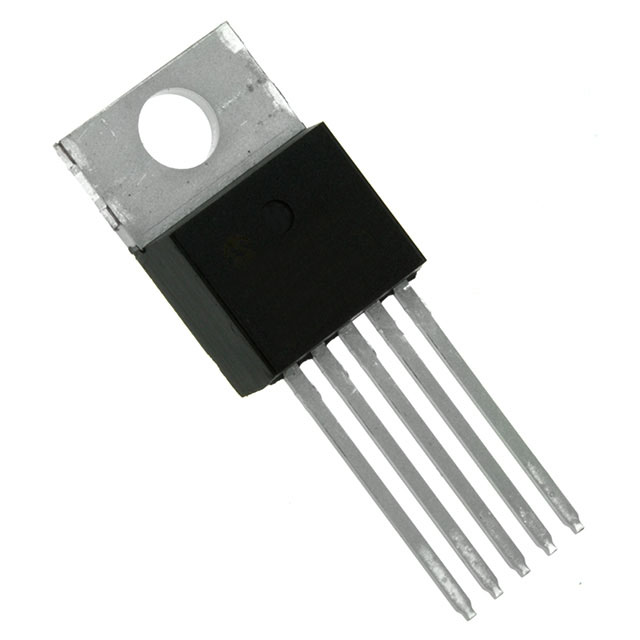

IC GATE DRVR LOW-SIDE TO220-5
|
- | Tube | Active | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 10A, 10A |
|
TC4426EUA713
IC GATE DRVR LOW-SIDE 8MSOP
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A |
|
TC4426ACPA

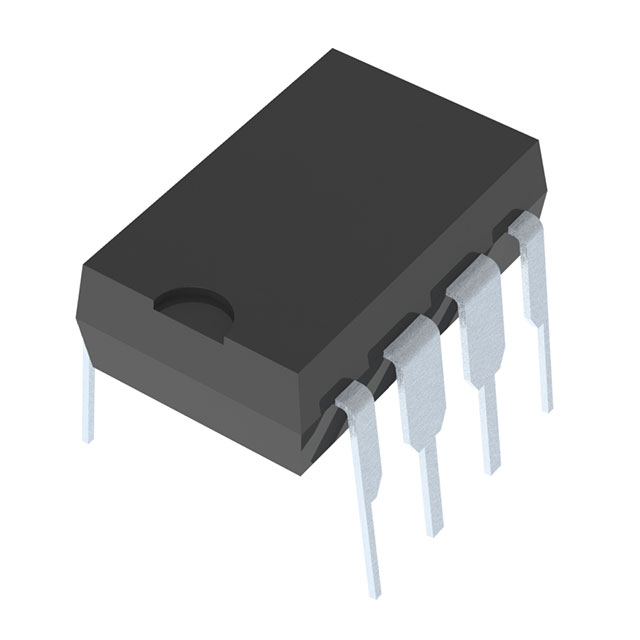

IC GATE DRVR LOW-SIDE 8DIP
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A |
|
TC4423VMF713
IC GATE DRVR LOW-SIDE 8DFN
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 3A, 3A |
|
MIC4421ABM-TR
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tape & Reel (TR) | Discontinued at | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 3V | 9A, 9A |
|
MIC5013YM
IC GATE DRVR HI/LOW SIDE 8SOIC
|
- | Tube | Active | High-Side or Low-Side | Single | 1 | N-Channel MOSFET | 7V ~ 32V | 2V, 4.5V | - |
|
MIC4128YMME
IC GATE DRVR LOW-SIDE 8MSOP
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | 0.8V, 2.4V | 1.5A, 1.5A |
|
MCP1406-E/AT
IC GATE DRVR LOW-SIDE TO220-5
|
- | Tube | Active | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A |
|
TC4420VPA
IC GATE DRVR LOW-SIDE 8DIP
|
- | Tube | Active | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A |
|
TC4404EOA713
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A |
|
MCP1405T-E/SO
IC GATE DRVR LOW-SIDE 16SOIC
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 4.5A, 4.5A |
|
TC4452VAT
IC GATE DRVR LOW-SIDE TO220-5
|
- | Tube | Active | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 13A, 13A |
