| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCP14E6-E/P
IC GATE DRVR LOW-SIDE 8DIP
|
- | Tube | Active | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 2A, 2A |
|

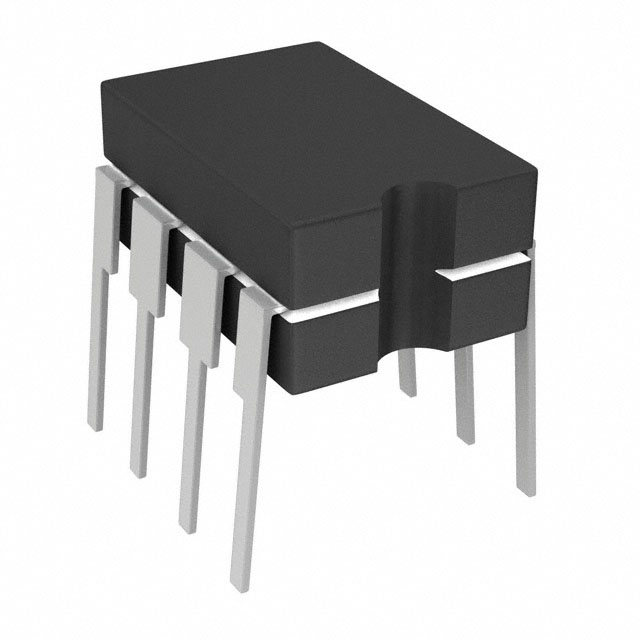

TC4431EJA
IC GATE DRVR HI/LOW SIDE 8CERDIP
|
- | Tube | Obsolete | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 2.4V | 1.5A, 1.5A |
|
MIC4421AYN
IC GATE DRVR LOW-SIDE 8DIP
|
- | Tube | Active | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 3V | 9A, 9A |
|
TC1411EUA
IC GATE DRVR LOW-SIDE 8MSOP
|
- | Tube | Active | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 16V | 0.8V, 2V | 1A, 1A |
|
MIC4126BME
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tube | Obsolete | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | 0.8V, 2.4V | 1.5A, 1.5A |
|
TC4429EMF
IC GATE DRVR LOW-SIDE 8DFN
|
- | Tube | Active | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A |
|
TC4428ACPA
IC GATE DRVR LOW-SIDE 8DIP
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A |
|

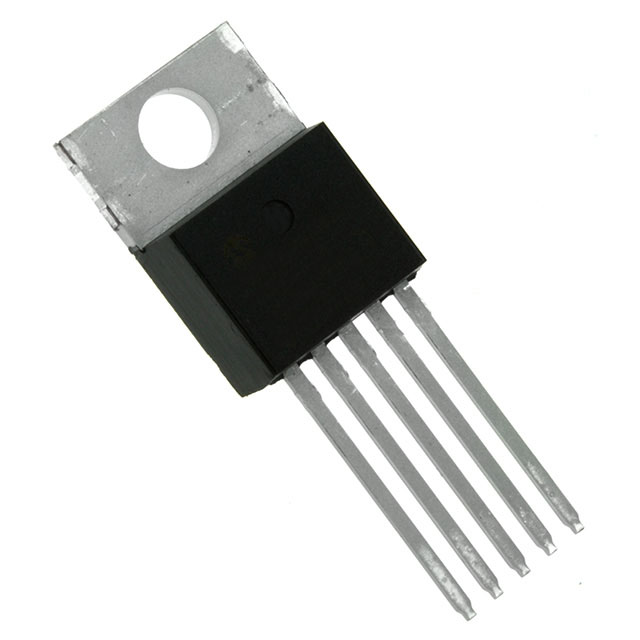

TC4429VAT
IC GATE DRVR LOW-SIDE TO220-5
|
- | Tube | Active | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A |
|
MIC4126YMME
IC GATE DRVR LOW-SIDE 8MSOP
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | 0.8V, 2.4V | 1.5A, 1.5A |
|
MCP14E3T-E/SN
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 4A, 4A |
|
TC4426AEPA
IC GATE DRVR LOW-SIDE 8DIP
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A |
|
|
TC4422VMF
IC GATE DRVR LOW-SIDE 8DFN
|
- | Tube | Active | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 9A, 9A |
