| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC4420VAT
IC GATE DRVR LOW-SIDE TO220-5
|
- | Tube | Active | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A |
|
TC1410NCOA
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tube | Active | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 16V | 0.8V, 2V | 500mA, 500mA |
|
TC4427AEMF
IC GATE DRVR LOW-SIDE 8DFN
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A |
|
TC4627MJA
IC GATE DRVR HI/LOW SIDE 8CERDIP
|
- | Tube | Active | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4V ~ 6V | 0.8V, 2.4V | 1.5A, 1.5A |
|
|
TC4423VMF
IC GATE DRVR LOW-SIDE 8DFN
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 3A, 3A |
|
MCP14A0455-E/MNY
IC GATE DRVR LOW-SIDE 8TDFN
|
- | Tube | Active | Low-Side | Independent | 2 | IGBT | 4.5V ~ 18V | 0.8V, 2V | 4.5A, 4.5A |
|

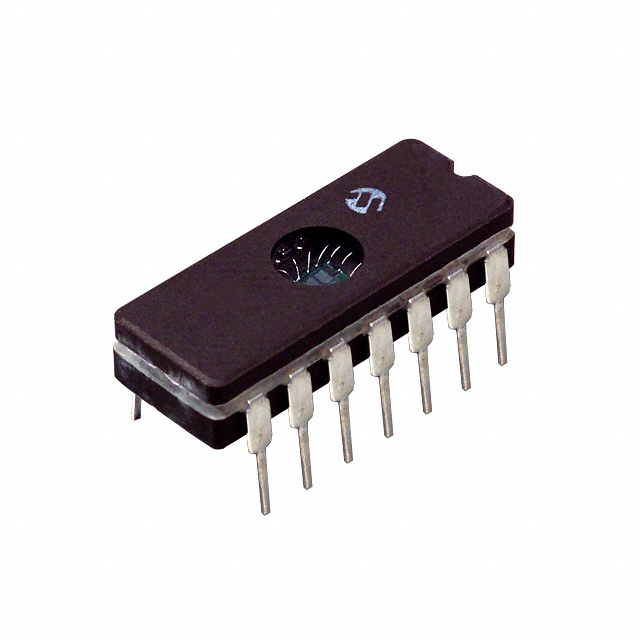

TC4467MJD
IC GATE DRVR LOW-SIDE 14CERDIP
|
- | Tube | Obsolete | Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.2A, 1.2A |
|
TC4426VOA
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A |
|

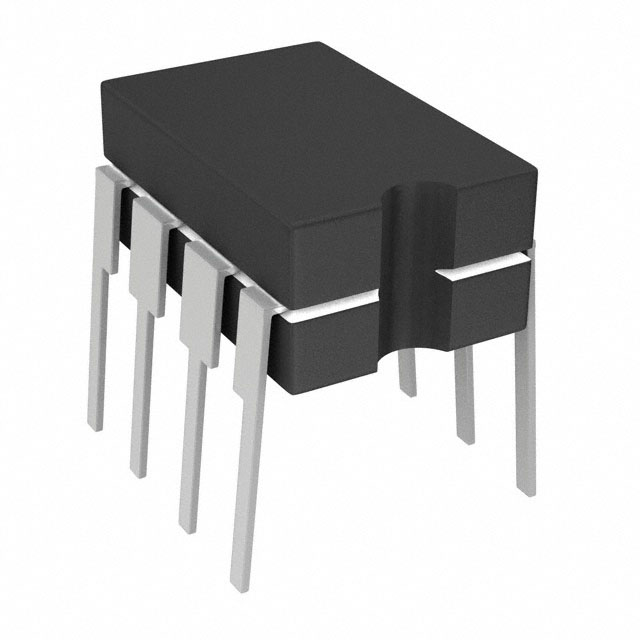

TC4420IJA
IC GATE DRVR LOW-SIDE 8CERDIP
|
- | Tube | Active | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A |
|

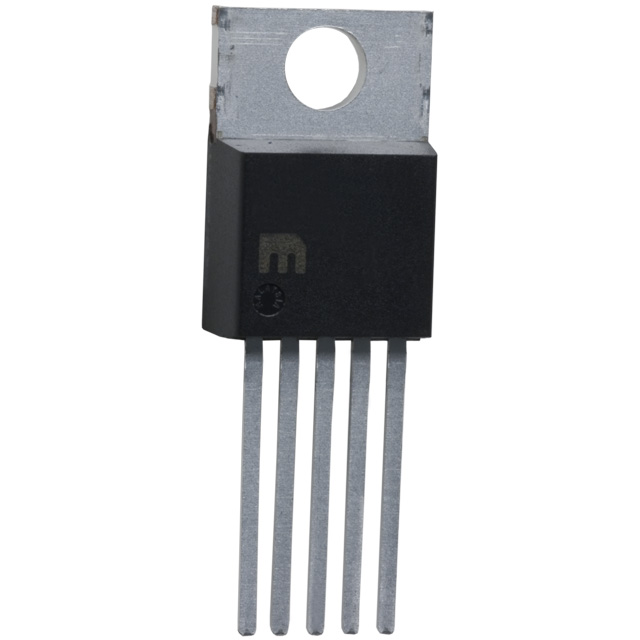

MIC4421AZT
IC GATE DRVR LOW-SIDE TO220-5
|
- | Tube | Active | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 3V | 9A, 9A |
|
MIC4421BM
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tube | Discontinued at | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 9A, 9A |
|
MIC5013BN
IC GATE DRV HI-SIDE/LO-SIDE 8DIP
|
- | Tube | Obsolete | High-Side or Low-Side | Single | 1 | N-Channel MOSFET | 7V ~ 32V | 2V, 4.5V | - |
