| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP1S60F1020I6
IC FPGA 773 I/O 1020FBGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | -40°C ~ 100°C (TJ) | 1020-BBGA | 1020-FBGA (33x33) | Not Verified | 57120 |
|

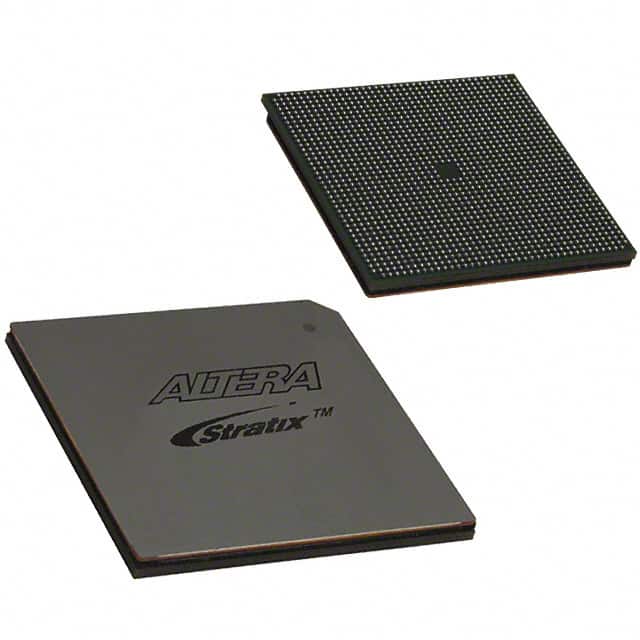

EP1S80F1508I6
IC FPGA 1203 I/O 1508FBGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | -40°C ~ 100°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 79040 |
|
EP1S30F1020I6GA
IC FPGA 726 I/O 1020FBGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | -40°C ~ 100°C (TJ) | 1020-BBGA | 1020-FBGA (33x33) | Not Verified | 32470 |
|
EP1S25F780C7
IC FPGA 597 I/O 780FBGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA | 780-FBGA (29x29) | Not Verified | 25660 |
|
EP1AGX90EF1152C6
IC FPGA 538 I/O 1152FBGA
|
Arria GX | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA | 1152-FBGA (35x35) | Not Verified | 90220 |
|
10AT115U3F45E3SGES
IC FPGA 624 I/O 1932FCBGA
|
Arria 10 GT | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FCBGA (45x45) | Not Verified | 1150000 |
|
5CGTFD7C5F23C7N
IC FPGA 240 I/O 484FBGA
|
Cyclone® V GT | Tray | Active | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 149500 |
|
1SD280PT3F55E3VGS2
IC FPGA 816 I/O 2912FBGA
|
Stratix® 10 DX | Tray | Obsolete | - | Surface Mount | 0°C ~ 100°C (TJ) | 2912-BBGA, FCBGA | 2912-FBGA (55x55) | Not Verified | 2753000 |
|
5SGTMC5K2F40C2
IC FPGA 600 I/O 1517FBGA
|
Stratix® V GT | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 425000 |
|
|
5SGTMC7K2F40C2
IC FPGA 600 I/O 1517FBGA
|
Stratix® V GT | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 622000 |
|
EP2SGX30DF780C3
IC FPGA 361 I/O 780FBGA
|
Stratix® II GX | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA | 780-FBGA (29x29) | Not Verified | 33880 |
|
EP4S100G3F45I1N
IC FPGA 781 I/O 1932FBGA
|
STRATIX® IV GT | Tray | Obsolete | 0.92V ~ 0.98V | Surface Mount | 0°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 291200 |
