| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP20K200CF672C8ES
IC FPGA 672FBGA
|
APEX-20KC® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 8320 |
|
EP1C20F324C6N
IC FPGA 233 I/O 324FBGA
|
Cyclone® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 324-BGA | 324-FBGA (19x19) | Not Verified | 20060 |
|
5CEFA7F31C8N
IC FPGA 480 I/O 896FBGA
|
Cyclone® V E | Tray | Active | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 896-BGA | 896-FBGA (31x31) | Not Verified | 149500 |
|
EP4SGX530HH35I3NGB
IC FPGA 1152HBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-HBGA (42.5x42.5) | Not Verified | 531200 |
|
5CEFA4U19I7N
IC FPGA 224 I/O 484UBGA
|
Cyclone® V E | Tray | Active | 1.07V ~ 1.13V | Surface Mount | -40°C ~ 100°C (TJ) | 484-FBGA | 484-UBGA (19x19) | Not Verified | 49000 |
|

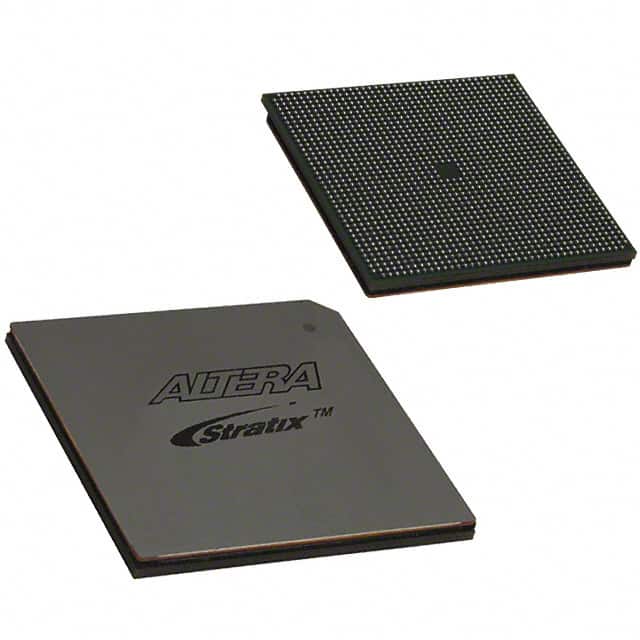

EP1S80F1508C6AA
IC FPGA 1203 I/O 1508FBGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 79040 |
|
EP4SGX230DF29C4N
IC FPGA 372 I/O 780FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 228000 |
|

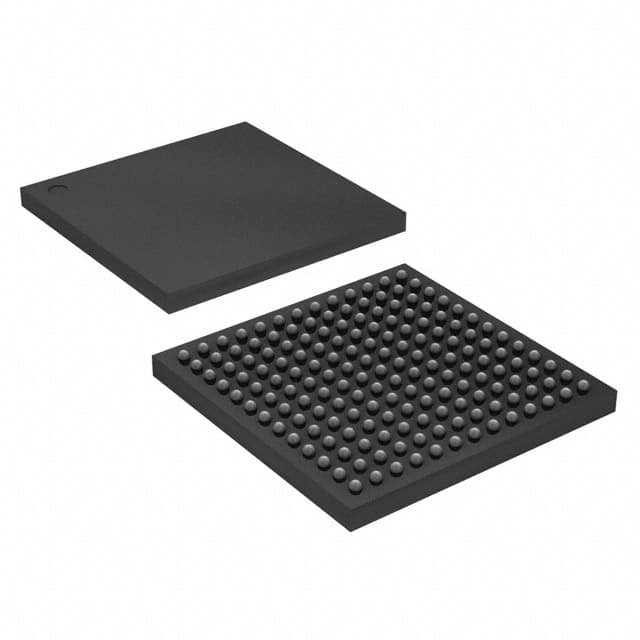

EP4CGX15BF14C7
IC FPGA 72 I/O 169FBGA
|
Cyclone® IV GX | Tray | Active | 1.16V ~ 1.24V | Surface Mount | 0°C ~ 85°C (TJ) | 169-LBGA | 169-FBGA (14x14) | Not Verified | 14400 |
|
EP1C12F256C6N
IC FPGA 185 I/O 256FBGA
|
Cyclone® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 256-BGA | 256-FBGA (17x17) | Not Verified | 12060 |
|
|
EP1C20F324C7
IC FPGA 233 I/O 324FBGA
|
Cyclone® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 324-BGA | 324-FBGA (19x19) | Not Verified | 20060 |
|
EP4SGX110HF35C2
IC FPGA 488 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 105600 |
|
|
EP1C4F324C6N
IC FPGA 249 I/O 324FBGA
|
Cyclone® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 324-BGA | 324-FBGA (19x19) | Not Verified | 4000 |
