| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

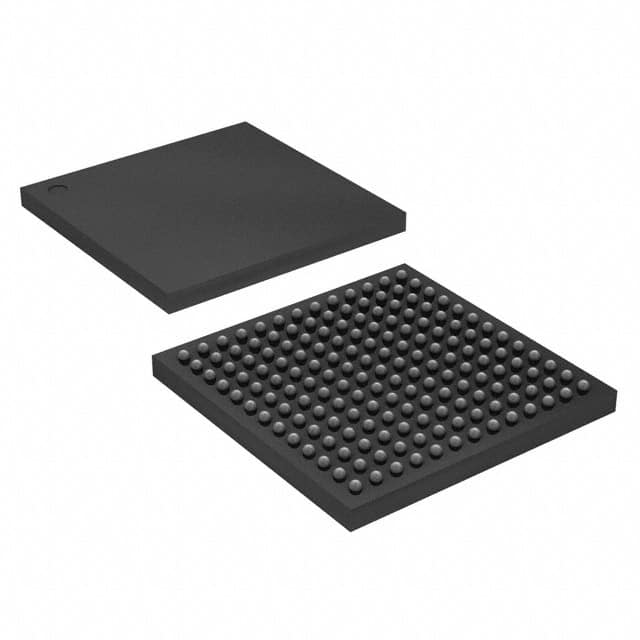

EP4CGX30BF14C8
IC FPGA 72 I/O 169FBGA
|
Cyclone® IV GX | Tray | Active | 1.16V ~ 1.24V | Surface Mount | 0°C ~ 85°C (TJ) | 169-LBGA | 169-FBGA (14x14) | Not Verified | 29440 |
|
EP2C50U484C7
IC FPGA 294 I/O 484UBGA
|
Cyclone® II | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 484-FBGA | 484-UBGA (19x19) | Not Verified | 50528 |
|

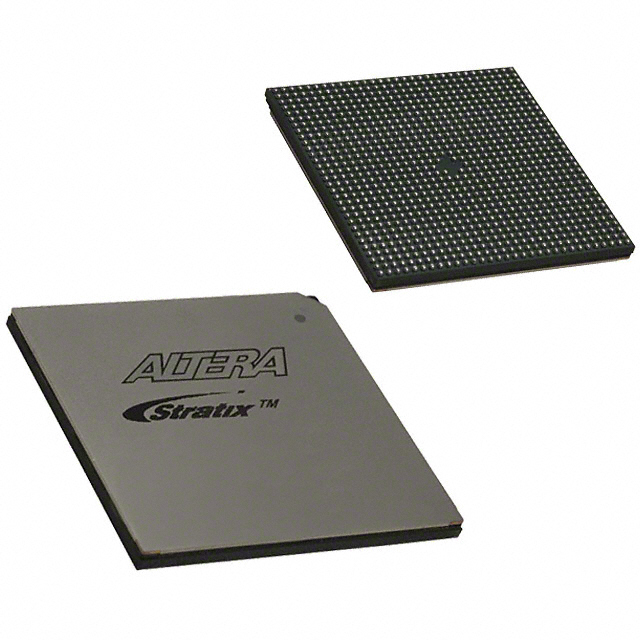

EP1S60B956C6
IC FPGA 683 I/O 956BGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 956-BBGA | 956-BGA (40x40) | Not Verified | 57120 |
|
EP2S130F780I4N
IC FPGA 534 I/O 780FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA | 780-FBGA (29x29) | Not Verified | 132540 |
|
EP20K400CF672C7GA
IC FPGA 488 I/O 672FBGA
|
APEX-20KC® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 16640 |
|
EP2C8T144C7
IC FPGA 85 I/O 144TQFP
|
Cyclone® II | Tray | Active | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP | 144-TQFP (20x20) | Not Verified | 8256 |
|
EP2S60F484C3
IC FPGA 334 I/O 484FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BBGA | 484-FBGA (23x23) | Not Verified | 60440 |
|
5CGXFC3B6U19A7N
IC FPGA 208 I/O 484UBGA
|
Cyclone® V GX | Tray | Active | 1.07V ~ 1.13V | Surface Mount | -40°C ~ 125°C (TJ) | 484-FBGA | 484-UBGA (19x19) | Not Verified | 31500 |
|
5CGXBC7C7F23C8N
IC FPGA 240 I/O 484FBGA
|
Cyclone® V GX | Tray | Active | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 149500 |
|
5CGXFC7B6M15C6N
IC FPGA 240 I/O 484MBGA
|
Cyclone® V GX | Tray | Active | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 484-LFBGA | 484-MBGA (15x15) | Not Verified | 149500 |
|
EP2S15F672I4N
IC FPGA 366 I/O 672FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 15600 |
|

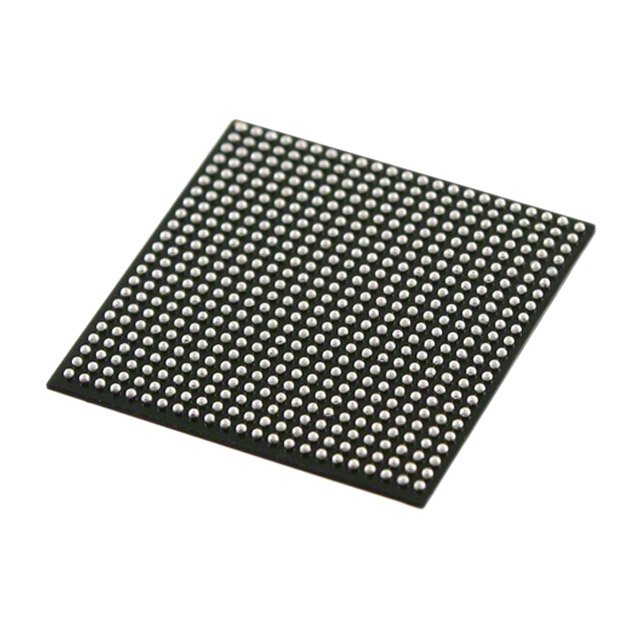

5CGXFC3B6F23I7
IC FPGA 208 I/O 484FBGA
|
Cyclone® V GX | Tray | Active | 1.07V ~ 1.13V | Surface Mount | -40°C ~ 100°C (TJ) | 484-BGA | 484-FBGA (23x23) | Not Verified | 36000 |
