| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP4SGX290NF45I4N
IC FPGA 920 I/O 1932FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 291200 |
|
|
EP4SGX530NF45C3N
IC FPGA 920 I/O 1932FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 531200 |
|
EP4SGX530KH40C2N
IC FPGA 744 I/O 1517HBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-HBGA (42.5x42.5) | Not Verified | 531200 |
|
EP4SGX360KF43I4
IC FPGA 880 I/O 1760FCBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FCBGA (42.5x42.5) | Not Verified | 353600 |
|
EP4SGX180KF40I3
IC FPGA 744 I/O 1517FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 175750 |
|
EP4SGX180FF35I3
IC FPGA 564 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 175750 |
|
EP2AGX95EF29I5N
IC FPGA 372 I/O 780FBGA
|
Arria II GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 89178 |
|
|
EP2AGX95EF29C6N
IC FPGA 372 I/O 780FBGA
|
Arria II GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 89178 |
|
EP4SGX110FF35C2XG
IC FPGA 372 I/O 1152FBGA
|
Stratix® IV GX | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 105600 |
|
EP2AGX65CU17C5N
IC FPGA 156 I/O 358UBGA
|
Arria II GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 358-LFBGA, FCBGA | 358-UBGA, FCBGA (17x17) | Not Verified | 60214 |
|

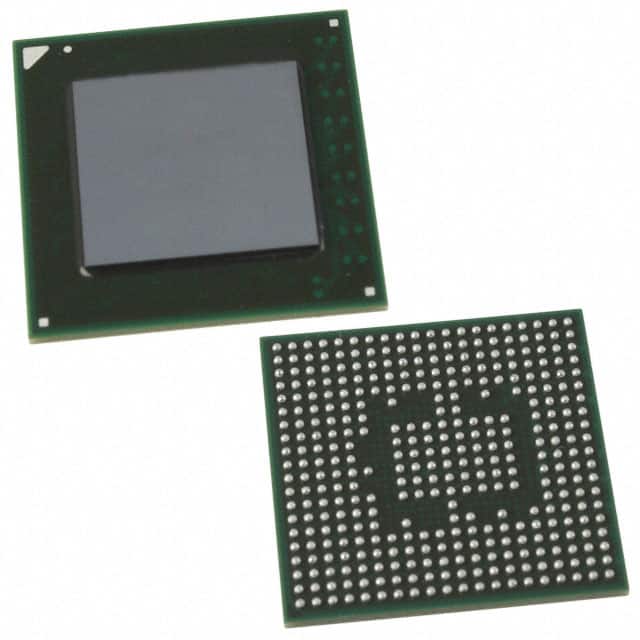

EP2AGX65CU17C6NES
IC FPGA 156 I/O 358UBGA
|
Arria II GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 358-LFBGA, FCBGA | 358-UBGA, FCBGA (17x17) | Not Verified | 60214 |
|

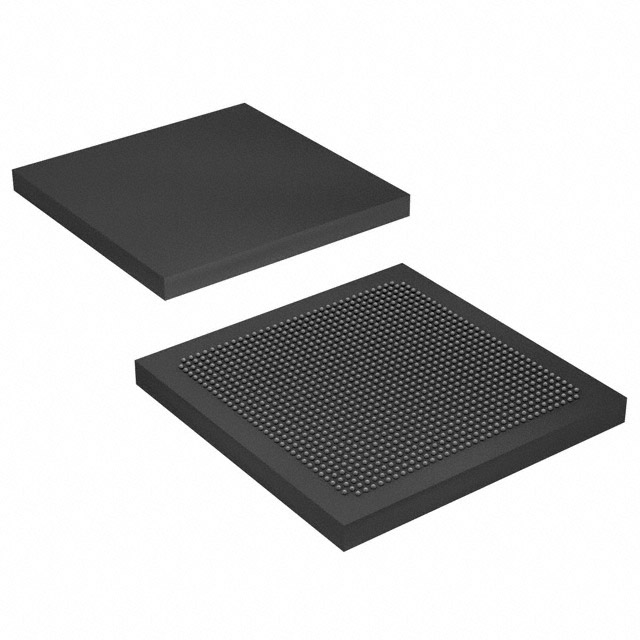

EP2AGX125EF35I5ES
IC FPGA 452 I/O 1152FBGA
|
Arria II GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 118143 |
