| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5SGSMD5H2F35I2G
IC FPGA 552 I/O 1152FBGA
|
Stratix® V GS | Tray | Active | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 457000 |
|
EP3SL340F1517C3
IC FPGA 976 I/O 1517FBGA
|
Stratix® III L | Tray | Obsolete | 0.86V ~ 1.15V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 337500 |
|
5SGSMD4H1F35C1G
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 360000 |
|
EP3SL200H780I4
IC FPGA 488 I/O 780HBGA
|
Stratix® III L | Tray | Obsolete | 0.86V ~ 1.15V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-HBGA (33x33) | Not Verified | 200000 |
|
5SGSMD5K3F40C4G
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 457000 |
|
EP3SL70F780I4N
IC FPGA 488 I/O 780FBGA
|
Stratix® III L | Tray | Obsolete | 0.86V ~ 1.15V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 67500 |
|
5SGSED6N1F45C2G
IC FPGA 840 I/O 1932FBGA
|
Stratix® V GS | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 583000 |
|

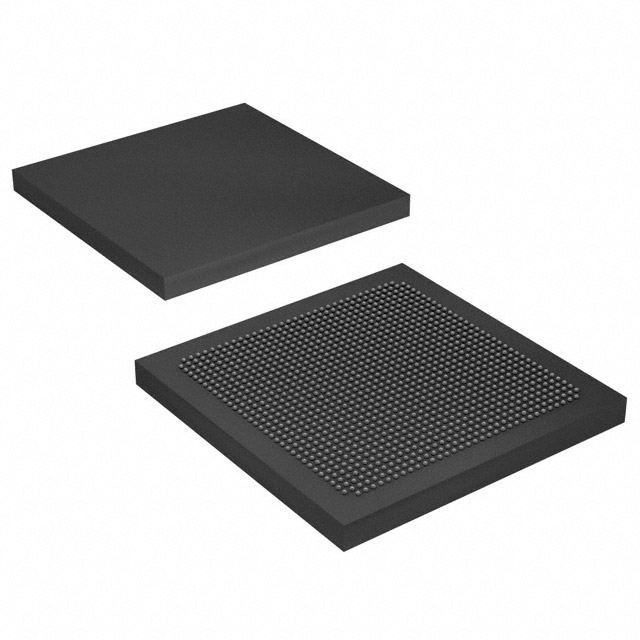

EP3SL340H1152C4LN
IC FPGA 744 I/O 1152HBGA
|
Stratix® III L | Tray | Obsolete | 0.86V ~ 1.15V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-HBGA (40x40) | Not Verified | 337500 |
|
EP4SGX230FF35C2X
IC FPGA 564 I/O 1152FBGA
|
Stratix® IV GX | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 228000 |
|
5SGSMD8N3F45I3LG
IC FPGA 840 I/O 1932FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 695000 |
|
EP3SL70F484C2G
IC FPGA 296 I/O 484FBGA
|
Stratix® III L | Tray | Active | 0.86V ~ 1.15V | Surface Mount | 0°C ~ 85°C (TJ) | 484-BBGA, FCBGA | 484-FBGA (23x23) | Not Verified | 67500 |
|
5SGSMD8N3F45C2G
IC FPGA 840 I/O 1932FBGA
|
Stratix® V GS | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 695000 |
