| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5SGSMD5K1F40C2L
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 457000 |
|
EP4CGX22CF19C6
IC FPGA 150 I/O 324FBGA
|
Cyclone® IV GX | Tray | Active | 1.16V ~ 1.24V | Surface Mount | 0°C ~ 85°C (TJ) | 324-LBGA | 324-FBGA (19x19) | Not Verified | 21280 |
|
5SGSMD3E2H29C2LG
IC FPGA 360 I/O 780HBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-HBGA (33x33) | Not Verified | 236000 |
|
EP1S40F780C7N
IC FPGA 615 I/O 780FBGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 41250 |
|
EP1S30B956C6
IC FPGA 683 I/O 956BGA
|
Stratix® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 956-BBGA | 956-BGA (40x40) | Not Verified | 32470 |
|
5SGSMD5H3F35I3G
IC FPGA 552 I/O 1152FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 457000 |
|
EP3SL70F780C3NAC
IC FPGA 488 I/O 780FBGA
|
Stratix® III L | Tray | Obsolete | 0.86V ~ 1.15V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 67500 |
|
5SGSMD8K3F40I3LG
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 695000 |
|
|
5SGSMD4K3F40C4G
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 360000 |
|
5SGSED6N3F45I3LG
IC FPGA 840 I/O 1932FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 583000 |
|

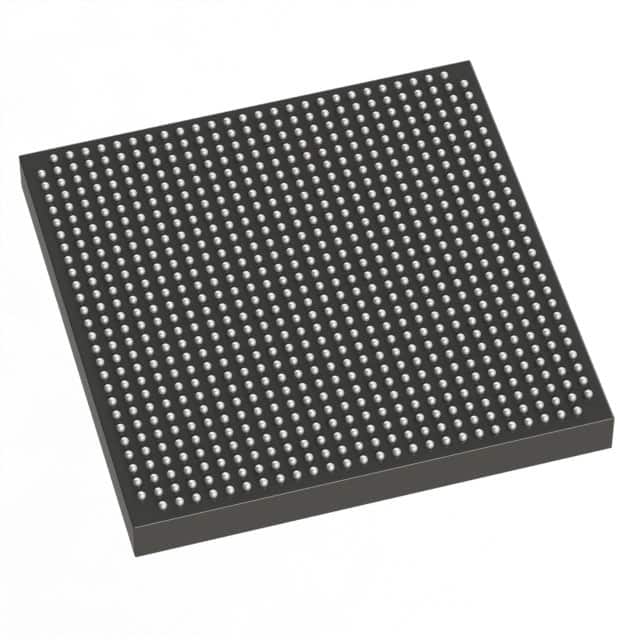

EP3SL50F780C4LN
IC FPGA 488 I/O 780FBGA
|
Stratix® III L | Tray | Obsolete | 0.86V ~ 1.15V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 47500 |
|
EP3SL200F1517C2
IC FPGA 976 I/O 1517FBGA
|
Stratix® III L | Tray | Obsolete | 0.86V ~ 1.15V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 200000 |
