| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5SGSMD3E2H29C2N
IC FPGA 360 I/O 780HBGA
|
Stratix® V GS | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-HBGA (33x33) | Not Verified | 236000 |
|
HC1S80F1020NAN
IC FPGA 782 I/O 1020FBGA
|
Stratix® HardCopy® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | - | 1020-BBGA | 1020-FBGA (33x33) | Not Verified | 79040 |
|
5AGTFD3H3F40I3NGA
IC FPGA 704 I/O 1517FBGA
|
Arria V GT | Tray | Obsolete | 1.12V ~ 1.18V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA, FC (40x40) | Not Verified | 362000 |
|

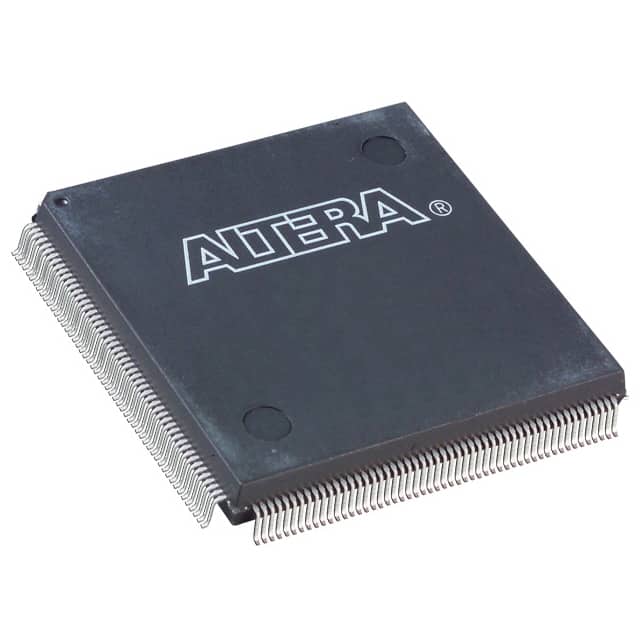

EPF8820AQC208-2
IC FPGA 152 I/O 208QFP
|
FLEX 8000 | Tray | Obsolete | 4.75V ~ 5.25V | Surface Mount | 0°C ~ 70°C (TA) | 208-BFQFP | 208-PQFP (28x28) | Not Verified | 672 |
|
HC1S80XX
IC FPGA 782 I/O 1020FBGA
|
Stratix® HardCopy® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TA) | 1020-BBGA | 1020-FBGA (33x33) | Not Verified | 79040 |
|
5SGSMD3H2F35C2LN
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 236000 |
|

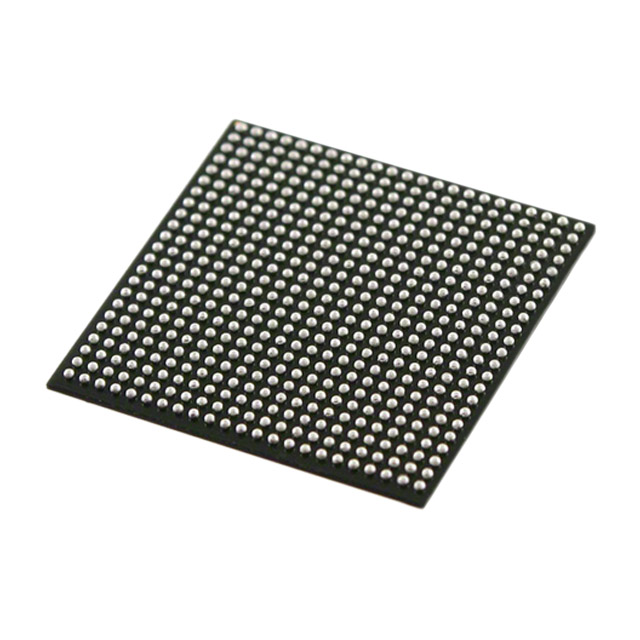

5CEFA2U19A7N
IC FPGA 224 I/O 484UBGA
|
Cyclone® V E | Tray | Active | 1.07V ~ 1.13V | Surface Mount | -40°C ~ 125°C (TJ) | 484-FBGA | 484-UBGA (19x19) | Not Verified | 25000 |
|
EPF8636AQC208-2
IC FPGA 136 I/O 208QFP
|
FLEX 8000 | Tray | Obsolete | 4.75V ~ 5.25V | Surface Mount | 0°C ~ 70°C (TA) | 208-BFQFP | 208-PQFP (28x28) | Not Verified | 504 |
|
5SGSMD5K2F40I2
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 457000 |
|
5SGSMD5H2F35C2N
IC FPGA 552 I/O 1152FBGA
|
Stratix® V GS | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 457000 |
|
EPF8636AQC208-4
IC FPGA 136 I/O 208QFP
|
FLEX 8000 | Tray | Obsolete | 4.75V ~ 5.25V | Surface Mount | 0°C ~ 70°C (TA) | 208-BFQFP | 208-PQFP (28x28) | Not Verified | 504 |
|
|
5SGSMD3E2H29C2LG
IC FPGA 360 I/O 780HBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA, FCBGA | 780-HBGA (33x33) | Not Verified | 236000 |
