| Image | Mfr Part # | Series | Package | Product Status | Function | Delay to 1st Tap | Available Total Delays | Number of Independent Delays | Voltage - Supply | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1000M-60
DS1000 5-TAP SILICON DELAY LINE
|
- | Bulk | Active | Nonprogrammable | 12ns | 60ns | 1 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1021S-50+T&R
IC DEL LN 256TAP 137.5NS 16SOIC
|
- | Tape & Reel (TR) | Obsolete | Programmable | 10ns | 137.5ns | 1 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1005M-60+
IC DELAY LINE 5TAP 60NS 8DIP
|
- | Tube | Obsolete | Nonprogrammable | 12ns | 60ns | 1 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1100LZ-75+
IC DELAY LINE 5TAP 75NS 8SOIC
|
- | Tube | Active | Nonprogrammable | 15ns | 75ns | 1 | 3V ~ 3.6V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1005M-200+
IC DELAY LINE 5TAP 200NS 8DIP
|
- | Tube | Obsolete | Nonprogrammable | 40ns | 200ns | 1 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1033Z-8+T
IC DELAY LINE 8NS 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Multiple, NonProgrammable | 8ns | 8ns | 3 | 2.7V ~ 3.6V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|

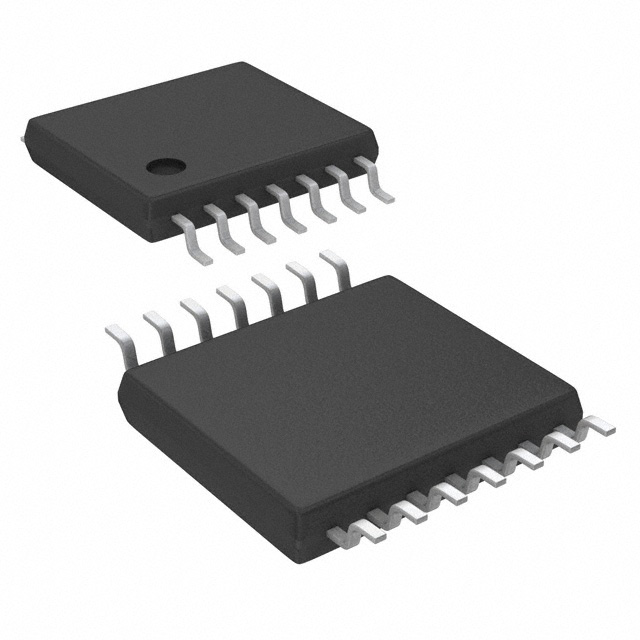

DS1110LE-250+
IC DELAY LN 10TAP 250NS 14TSSOP
|
* | Tube | Obsolete | - | - | - | - | - | - | - |
|
DS1005S-175+T&R
IC DELAY LINE 5TAP 175NS 16SOIC
|
- | Tape & Reel (TR) | Obsolete | Nonprogrammable | 35ns | 175ns | 1 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1040Z-500+
IC DELAY LINE 5TAP 500NS 8SOIC
|
- | Tube | Obsolete | 1-Shot, Programmable | 100ns | 500ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1013S-80+
IC DELAY LINE 80NS 16SOIC
|
- | Tube | Obsolete | Multiple, NonProgrammable | 80ns | 80ns | 3 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1110S-100+
IC DELAY LINE 10TAP 100NS 16SOIC
|
- | Tube | Active | Nonprogrammable | 10ns | 100ns | 1 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
MXD1013SA030
3-IN-1 SILICON DELAY LINE
|
- | Bulk | Active | Multiple | 30ns | 30ns | 3 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
