| Image | Mfr Part # | Series | Package | Product Status | Function | Delay to 1st Tap | Available Total Delays | Number of Independent Delays | Voltage - Supply | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

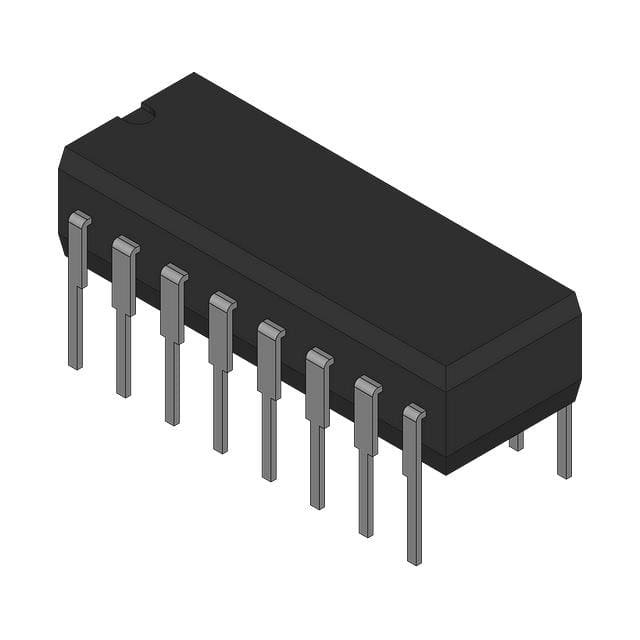

DS1007-2
DS1007 7-IN-1 SILICON DELAY LINE
|
- | Bulk | Active | Multiple, NonProgrammable | 4ns | 3ns ~ 10ns, 9ns ~ 40ns | 7 | 4.75V ~ 5.25V | Through Hole | 16-DIP (0.300", 7.62mm) |
|
DS1100LZ-350+
IC DELAY LINE 5TAP 350NS 8SOIC
|
- | Tube | Active | Nonprogrammable | 70ns | 350ns | 1 | 3V ~ 3.6V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1000Z-200N
DS1000 5-TAP SILICON DELAY LINE
|
- | Bulk | Active | Nonprogrammable | 40ns | 200ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1013S-50+T&R
IC DELAY LINE 50NS 16SOIC
|
- | Tape & Reel (TR) | Obsolete | Multiple, NonProgrammable | 50ns | 50ns | 3 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1013S-15+
IC DELAY LINE 15NS 16SOIC
|
- | Tube | Obsolete | Multiple, NonProgrammable | 15ns | 15ns | 3 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1000-25
DS1000 5-TAP SILICON DELAY LINE
|
- | Bulk | Active | Nonprogrammable | 5ns | 25ns | 1 | 4.75V ~ 5.25V | Through Hole | 14-DIP (0.300", 7.62mm) |
|
DS1110LE-150+
IC DELAY LN 10TAP 150NS 14TSSOP
|
* | Bulk | Obsolete | - | - | - | - | - | - | - |
|
DS1005S-150+
IC DELAY LINE 5TAP 150NS 16SOIC
|
- | Tube | Obsolete | Nonprogrammable | 30ns | 150ns | 1 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1023S-500+
IC DELAY LN 256TAP 1275NS 16SOIC
|
- | Tube | Active | 1-Shot, Programmable | 16.5ns | 1275ns | 1 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1013S-20+
IC DELAY LINE 20NS 16SOIC
|
- | Tube | Obsolete | Multiple, NonProgrammable | 20ns | 20ns | 3 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1013H-12
DS1013 3-IN-1 SILICON DELAY LINE
|
- | Bulk | Active | Multiple, NonProgrammable | 12ns | 12ns | 3 | 4.75V ~ 5.25V | - | - |
|
DS1040Z-150+
IC DELAY LINE 5TAP 150NS 8SOIC
|
- | Tube | Obsolete | 1-Shot, Programmable | 30ns | 150ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
