| Image | Mfr Part # | Series | Package | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCC3804NG4
IC OFFLINE SWITCH MULT TOP 8DIP
|
- | Tube | Discontinued at | - | No | - | Boost, Buck, Flyback, Forward | 8.3V ~ 12V | 49% | Up to 1MHz |
|
UCC3808APWTR-1
IC OFFLINE SW MULT TOP 8TSSOP
|
- | Tape & Reel (TR) | Obsolete | Isolated | - | - | Boost, Buck, Half-Bridge, Push-Pull | 8.3V ~ 15V | 49% | 1MHz |
|
UCC28782ADRTWT
PROTOTYPE
|
- | Bulk | Active | Isolated | Yes | - | Flyback | 14V ~ 34V | - | 420kHz |
|
|
UCC2813PWTR-2G4
IC OFFLINE SW MULT TOP 8TSSOP
|
- | Tape & Reel (TR) | Obsolete | Non-Isolated | Yes | - | Boost, Flyback, Forward | 8.3V ~ 12V | 99% | 1MHz |
|
UCC2808D-1G4
IC OFFLINE SW PUSH-PULL 8SOIC
|
- | Tube | Discontinued at | Isolated | No | - | Push-Pull | 8.3V ~ 14V | 50% | 1MHz |
|
UCC25701NG4
IC OFFLINE SWITCH MULT TOP 14DIP
|
- | Tube | Discontinued at | Isolated | No | - | Boost, Flyback, Forward | 9V ~ 15V | 99% | 700kHz |
|
|
UCC2813N-4
IC OFFLINE SWITCH MULT TOP 8DIP
|
- | Bulk | Obsolete | Non-Isolated | Yes | - | Boost, Flyback, Forward | 8.3V ~ 12V | 49% | 1MHz |
|
UCC28630D
IC OFFLINE SWITCH FLYBACK 7SOIC
|
- | Tube | Active | Isolated | No | - | Flyback | 8V ~ 20V | 70% | 200Hz ~ 120kHz |
|
UCC3580D-4
IC OFFLINE SW MULT TOP 16SOIC
|
- | Bulk | Active | Isolated | No | - | Flyback, Forward | 8.5V ~ 15V | 66% | - |
|

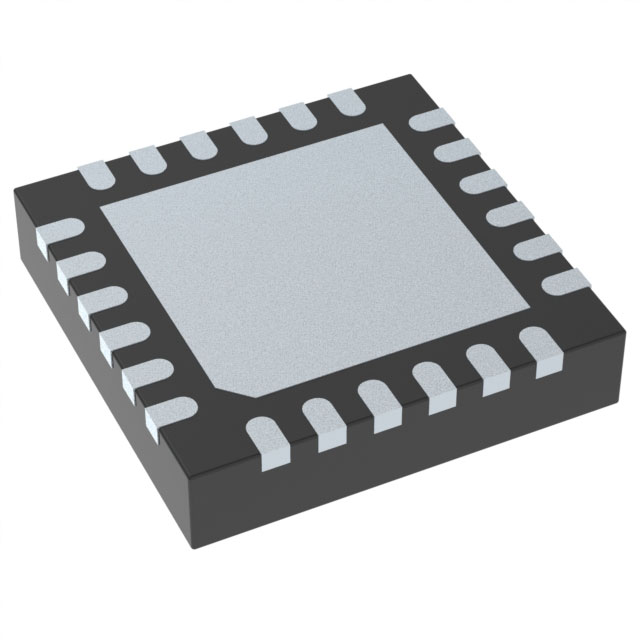

UCC28782CDRTWR
IC ISOLATION
|
- | Tape & Reel (TR) | Active | Isolated | Yes | - | Boost, Flyback | 14V ~ 34V | - | 420kHz |
|
|
UCC28631DR
IC OFFLINE SWITCH FLYBACK 7SOIC
|
- | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 8V ~ 20V | 70% | 200Hz ~ 120kHz |
|
UCC28703DBVR
IC OFFLINE SW FLYBACK SOT23-6
|
- | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 9V ~ 35V | - | 1kHz ~ 130kHz |
